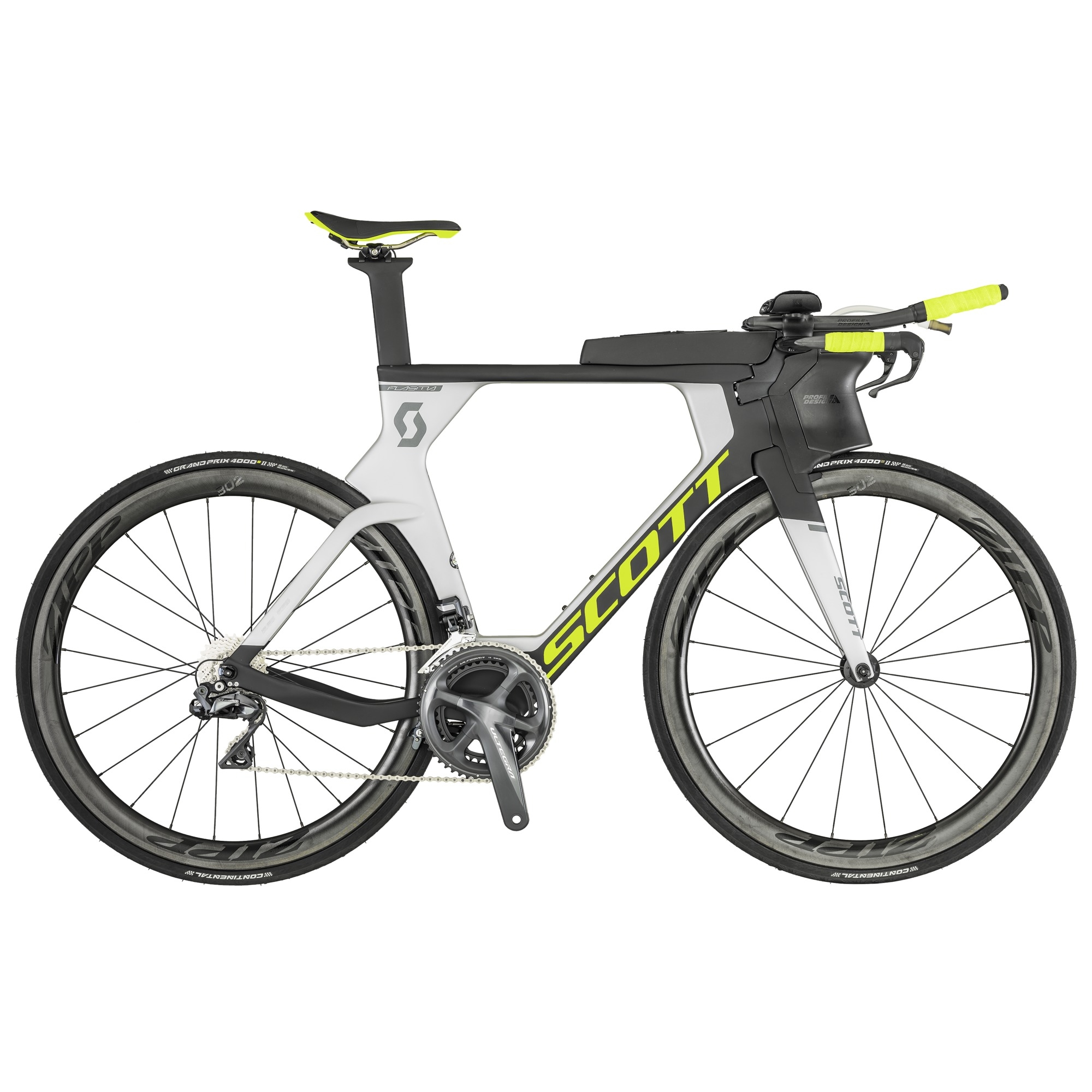

2019 SCOTT PLASMA RC

產品規格

車架

Plasma 5 / IMP technology / HMX

TT / TRI Geometry / Plasma HMX seatpost / Replaceable hanger / UCI approved

前叉

Plasma 5

1"- 1 1/8" Carbon / integrated

頭碗

Syncros Integrated

1-1 1/8" drop-in headset

後變速器

Shimano Ultegra RD-R8050

22 Speed Electronic

前變速器

Shimano Ultegra FD-R8050

Eletronic Shift System

變速把手

Shimano Di2 SW-R9160

煞車把手

Shimano Di2 ST-R8060

煞車系統

Front: SCOTTT KB136

Rear: Shimano Ultegra BR-R8010R, direct mount

曲柄組

Shimano Ultegra FC-R8000

39/53 T

五通中軸
(BB)

Shimano SM-BB71-41B

把手

Profile Plasma 5 Aeria, flat, 420mm

Profile T5+Carbon

龍頭

Profile Plasma 5 TRI, 30°, 85mm

座管

Plasma HMX with Ritchey WCS clamp

adjustable head

座墊

Syncros Belcarra 1.5 TT

輪組

Zipp 302 carbon clincher

鏈條

Shimano CN-HG701-11

飛輪

Shimano Ultegra CS-R8000

11-28

外胎

Continental Grand Sport Race

700x25C Fold

成車重量 KG

9

成車

建議售價

NT$320,000(預約接單)

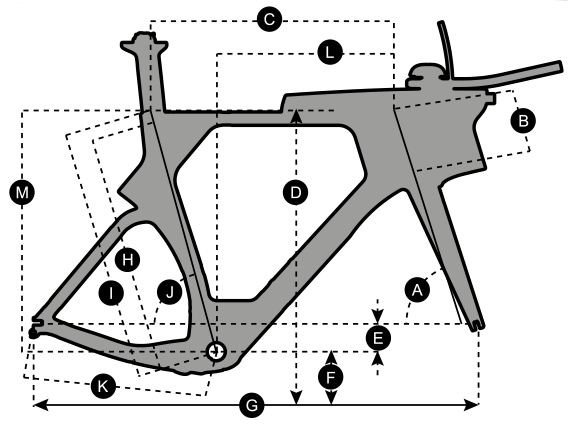

車架幾何



S/51



M/54



L/57



XL/60



A

HEAD TUBE ANGLE

72.0 °



73.0 °



73.0 °



73.5 °



B

HEAD TUBE LENGTH

110.0 MM

4.3 IN

138.0 MM

5.4 IN

170.0 MM

6.7 IN

199.0 MM

7.8 IN

C

TOP TUBE HORIZONTAL

524.0 MM

20.6 IN

544.0 MM

21.4 IN

564.0 MM

22.2 IN

583.0 MM

23.0 IN

D

STANDOVER HEIGHT

779.0 MM

30.7 IN

809.0 MM

31.9 IN

839.0 MM

33.0 IN

869.0 MM

34.2 IN

E

BB OFFSET

-65.0 MM

-2.6 IN

-65.0 MM

-2.6 IN

-65.0 MM

-2.6 IN

-65.0 MM

-2.6 IN

F

BB HEIGHT

269.0 MM

10.6 IN

269.0 MM

10.6 IN

269.0 MM

10.6 IN

269.0 MM

10.6 IN

G

WHEEL BASE

965.0 MM

38.0 IN

983.0 MM

38.7 IN

1,009.0 MM

39.7 IN

1,029.0 MM

40.5 IN

H

BB CENTER TO TOPTUBE CENTER

514.8 MM

20.3 IN

544.6 MM

21.4 IN

574.4 MM

22.6 IN

604.2 MM

23.8 IN

I

BB CENTER TO TOP OF SEATTUBE

529.8 MM

20.9 IN

559.6 MM

22.0 IN

589.4 MM

23.2 IN

619.2 MM

24.4 IN

J

SEATTUBE ANGLE

74.0 °



75.0 °



75.0 °



76.0 °



K

CHAINSTAY MIN.

403.0 MM

15.9 IN

403.0 MM

15.9 IN

403.0 MM

15.9 IN

403.0 MM

15.9 IN

L

REACH

380.0 MM

15.0 IN

397.0 MM

15.6 IN

414.0 MM

16.3 IN

430.0 MM

16.9 IN

M

STACK

510.0 MM

20.1 IN

540.0 MM

21.3 IN

570.0 MM

22.4 IN

600.0 MM

23.6 IN

N

STEM LENGTH

85.0 MM

3.3 IN

85.0 MM

3.3 IN

85.0 MM

3.3 IN

85.0 MM

3.3 IN
