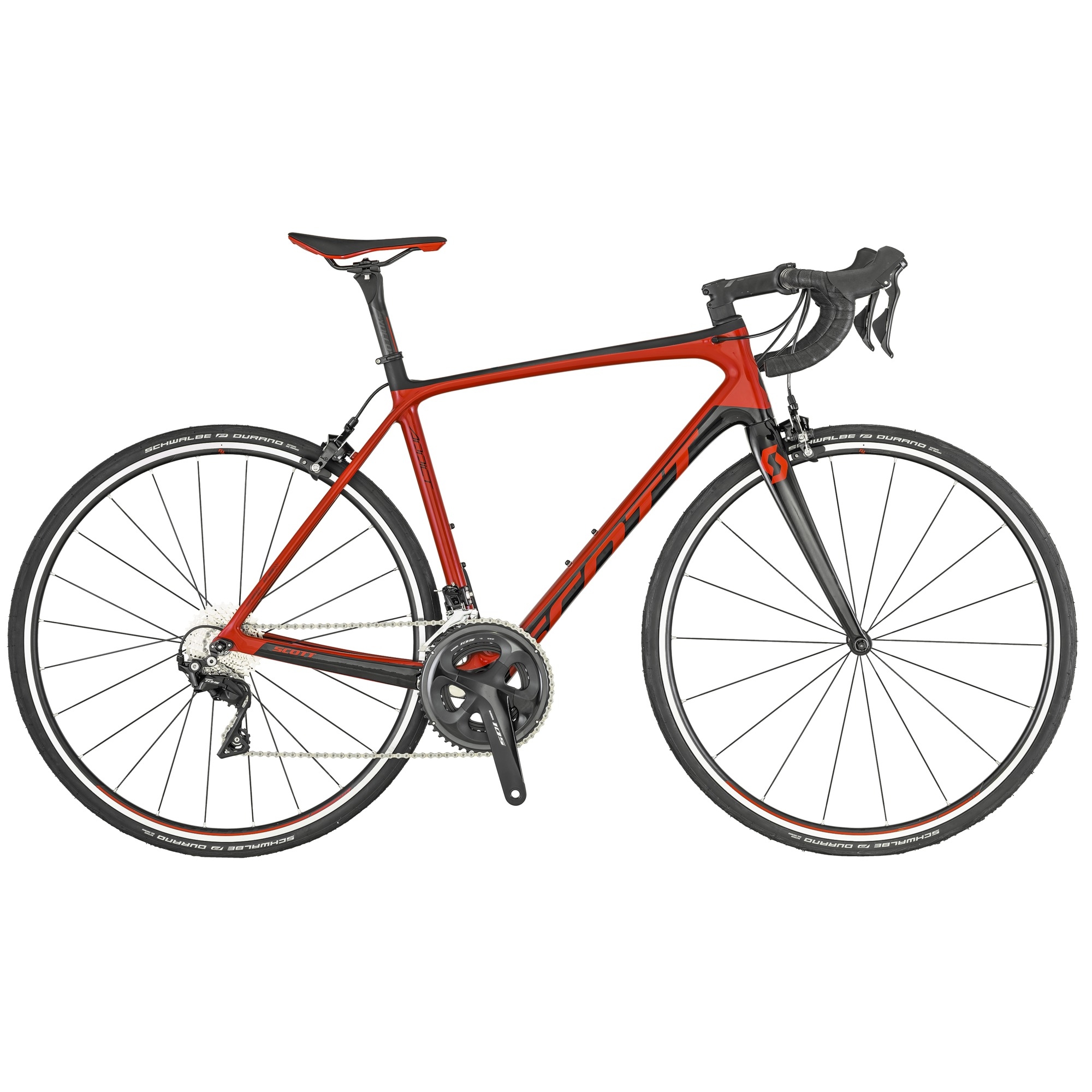

2019 SCOTT ADDICT 20

耐力挑戰型公路車


ADDICT家族的全新成員,屬於Endurance耐力挑戰性格的New ADDICT在2019年重磅登場,這部全新發表的ADDICT幾乎是完全重新設計的!為了迎接未來市場主流的公路車碟煞制動系統,採用略為加長的車首管幾何,以及一體成型的車架前三角和吸震型的碳纖疊層結構設計,同時在重量上仍必須以輕量化為原則,並且加寬了前叉與後叉間距可容許最大32C的輪胎安裝,舒適與強悍的調性讓您能騎得更遠。

車架尺寸:XXS47 / XS49 / S52 / M54 / L56 / XL58 / XXL61
建議售價:成車NT$ 69,500

產品規格

車架

Addict HMF Carbon technology

Endurance geometry / Replaceable Dropout

前叉

Addict HMF

1 1/8"-1 1/4" Carbon steerer

Alloy Dropout

頭碗

Syncros Integrated

後變速器

Shimano 105 Black RD-R7000-GS

22 Speed

前變速器

Shimano 105 FD-R7000 Black

變速把手

Shimano 105 ST-R7000

Dual control 22 Speed

煞車系統

Shimano 105 BR-R7000

Super SLR Dual pivot

曲柄組

Shimano FC-R7000 Compact

Hyperdrive 50x34 T Black

五通中軸
(BB)

Shimano BB-RS500-PB

把手

Syncros Creston 2.0 Compact

Alloy 31.8mm

龍頭

Syncros RR2.0

1 1/8" / four Bolt 31.8mm

座管

Syncros Carbon RR1.2

27.2/350mm

座墊

Syncros Tofino T-Channel 2.0

輪組

Syncros RP2.0

18 Front / 24 Rear

鏈條

Shimano CN-HG601-11

飛輪

Shimano 105 CS-R7000

11 Speed 11-32

外胎

Schwalbe Durano Fold

700x28C

成車重量 KG

7.96

成車

建議售價

NT$69,500

車架幾何



XXS/47



XS/49



S/52



M/54



L/56



XL/58



XXL/61



A

HEAD TUBE ANGLE

70.5 °



71.0 °



72.0 °



72.5 °



73.0 °



73.3 °



73.3 °



B

HEAD TUBE LENGTH

115.0 MM

4.5 IN

125.0 MM

4.9 IN

145.0 MM

5.7 IN

165.0 MM

6.5 IN

185.0 MM

7.3 IN

205.0 MM

8.1 IN

225.0 MM

8.9 IN

C

TOP TUBE HORIZONTAL

505.0 MM

19.9 IN

515.0 MM

20.3 IN

530.0 MM

20.9 IN

545.0 MM

21.5 IN

560.0 MM

22.0 IN

575.0 MM

22.6 IN

590.0 MM

23.2 IN

D

STANDOVER HEIGHT

725.3 MM

28.6 IN

741.1 MM

29.2 IN

767.5 MM

30.2 IN

787.5 MM

31.0 IN

807.5 MM

31.8 IN

827.1 MM

32.6 IN

851.4 MM

33.5 IN

E

BB OFFSET

-67.0 MM

-2.6 IN

-67.0 MM

-2.6 IN

-67.0 MM

-2.6 IN

-67.0 MM

-2.6 IN

-67.0 MM

-2.6 IN

-67.0 MM

-2.6 IN

-67.0 MM

-2.6 IN

F

BB HEIGHT

280.2 MM

11.0 IN

280.2 MM

11.0 IN

280.2 MM

11.0 IN

280.2 MM

11.0 IN

280.2 MM

11.0 IN

280.2 MM

11.0 IN

280.2 MM

11.0 IN

G

WHEEL BASE

973.1 MM

38.3 IN

979.4 MM

38.6 IN

981.2 MM

38.6 IN

986.8 MM

38.9 IN

991.6 MM

39.0 IN

999.0 MM

39.3 IN

1,012.7 MM

39.9 IN

H

BB CENTER TO TOPTUBE CENTER

410.0 MM

16.1 IN

430.0 MM

16.9 IN

460.0 MM

18.1 IN

480.0 MM

18.9 IN

500.0 MM

19.7 IN

520.0 MM

20.5 IN

550.0 MM

21.7 IN

I

BB CENTER TO TOP OF SEATTUBE

470.0 MM

18.5 IN

490.0 MM

19.3 IN

520.0 MM

20.5 IN

540.0 MM

21.3 IN

560.0 MM

22.0 IN

580.0 MM

22.8 IN

610.0 MM

24.0 IN

J

SEAT ANGLE

75.0 °



75.0 °



74.5 °



74.0 °



73.5 °



73.1 °



73.0 °



K

CHAINSTAY

410.0 MM

16.1 IN

410.0 MM

16.1 IN

410.0 MM

16.1 IN

410.0 MM

16.1 IN

410.0 MM

16.1 IN

410.0 MM

16.1 IN

410.0 MM

16.1 IN

L

REACH

366.6 MM

14.4 IN

373.5 MM

14.7 IN

377.3 MM

14.9 IN

381.2 MM

15.0 IN

384.6 MM

15.1 IN

389.0 MM

15.3 IN

397.0 MM

15.6 IN

M

STACK

516.7 MM

20.3 IN

527.9 MM

20.8 IN

550.5 MM

21.7 IN

571.3 MM

22.5 IN

592.3 MM

23.3 IN

612.5 MM

24.1 IN

613.6 MM

24.2 IN

N

STEM LENGTH
