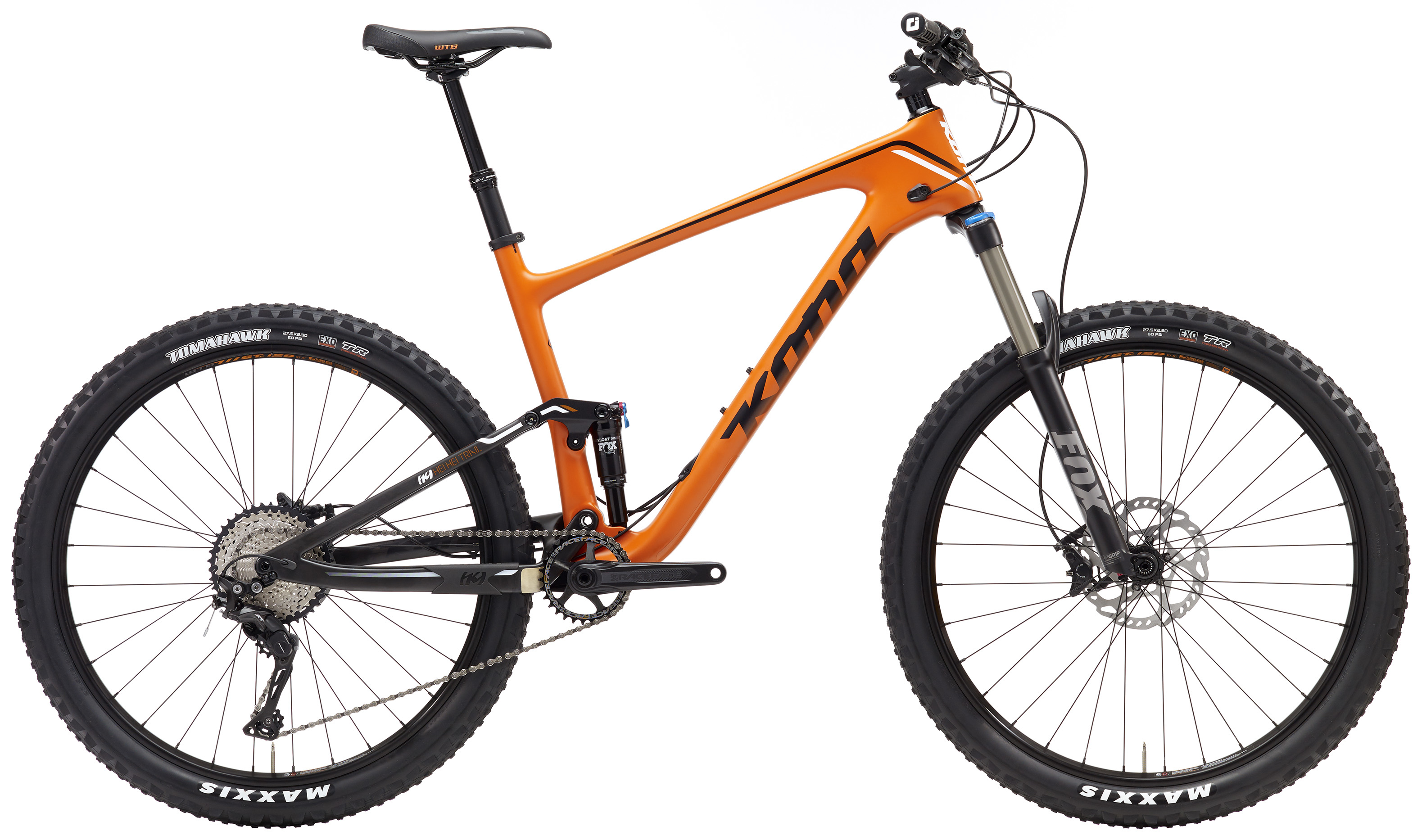

2017 KONA HEI HEI TRAIL

The all-new carbon Hei Hei Trail means business, and it steps outside the boundaries, showing just how far it can go. An all-new optimized and aggressive geometry based around 27.5-inch wheels allowed us to up the travel while taking full advantage of our proven Fuse Independent Suspension design. The end result is a Hei Hei begging for higher speeds and steeper pitches—all in the name of fun.

Order KONA HEI HEI TRAIL

Feature

Frame Material: Kona Race Light Carbon
Wheel Size: 27.5
Wheels: WTB STP i29 TCS
Suspension Platform: Fuse
Front/Rear Suspension: 140mm/140mm
Shock: Fox Performance Float DPS
Fork: Fox Rhythm 34 Float 140mm
Crankset: RaceFace Aeffect
Drivetrain: Shimano XT 1x 11spd
Cockpit: Kona XC/BC 35 Riser bar and stem, ODI Ruffian MX grips
Brakes: Shimano SLX
Front Tire: Maxxis Tomahawk EXO TR 27.5x2.3"
Rear Tire: Maxxis Tomahawk EXO TR 27.5x2.3"
Saddle: WTB Volt Comp (Volt 250 Comp size S)

SPEC

FRAME MATERIAL	Kona Race Light Carbon 140mm Travel
SIZES	XS, S, M, L
REAR SHOCK	Fox Performance Float DPS
FORK	Fox Rhythm 34 Float Air 140mm Tapered 110mm Spacing
CRANKARMS	RaceFace Aeffect
CHAINRINGS	30t Narrow/wide
B/B	RaceFace PF92
PEDALS	n/a
CHAIN	KMC X11-1
FREEWHEEL	Shimano SLX 11-42t 11spd
CHAINGUIDE	n/a
F/D	n/a
R/D	Shimano XT
SHIFTERS	Shimano SLX
BRAKE CALIPERS	Shimano SLX
FRONT BRAKE ROTOR	Shimano SLX 180mm
REAR BRAKE ROTOR	Shimano SLX 160mm
BRAKE LEVERS	Shimano SLX
HEADSET	FSA No.57B
HANDLEBAR	Kona XC/BC 35 Riser
STEM	Kona XC/BC 35
SEATPOST	KS Lev Integra w/Southpaw Lever 31.6mm
SEAT CLAMP	Kona Clamp
GRIPS	ODI Ruffian MX
SADDLE	WTB Volt Comp (Volt 250 Comp size S)
FRONT HUB	Shimano SLX 110x15mm
REAR HUB	Shimano SLX 148x12mm
SPOKES	Stainless Black 15g
RIMS	WTB STP i29 TCS
FRONT TIRE	Maxxis Tomahawk EXO TR 27.5x2.3"
REAR TIRE	Maxxis Tomahawk EXO TR 27.5x2.3"
PAINT COLOR	Matt Orange/Black/White
EXTRAS	n/a

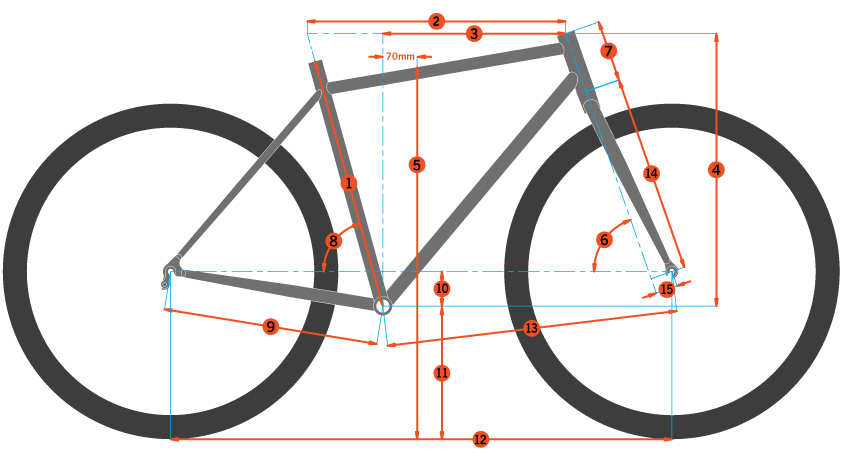

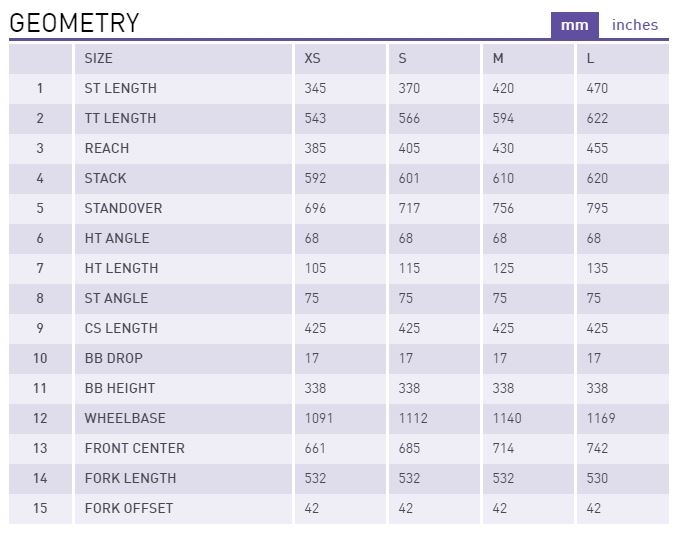

GEOMETRY

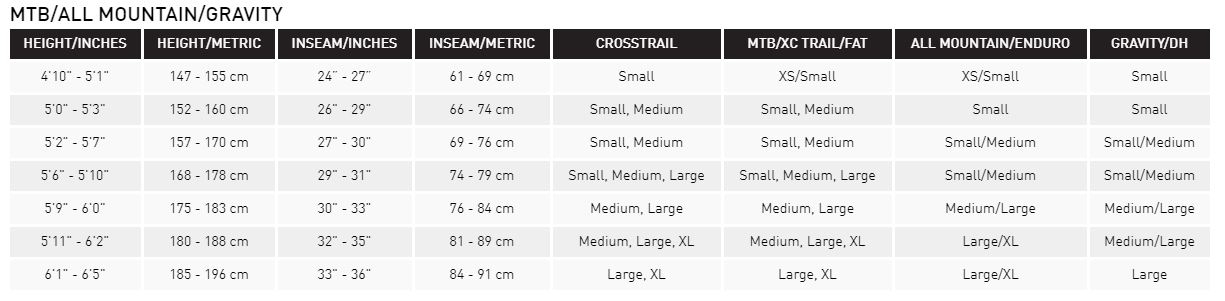

SIZE CHART
