2019 SCOTT SCALE RC 900 SL

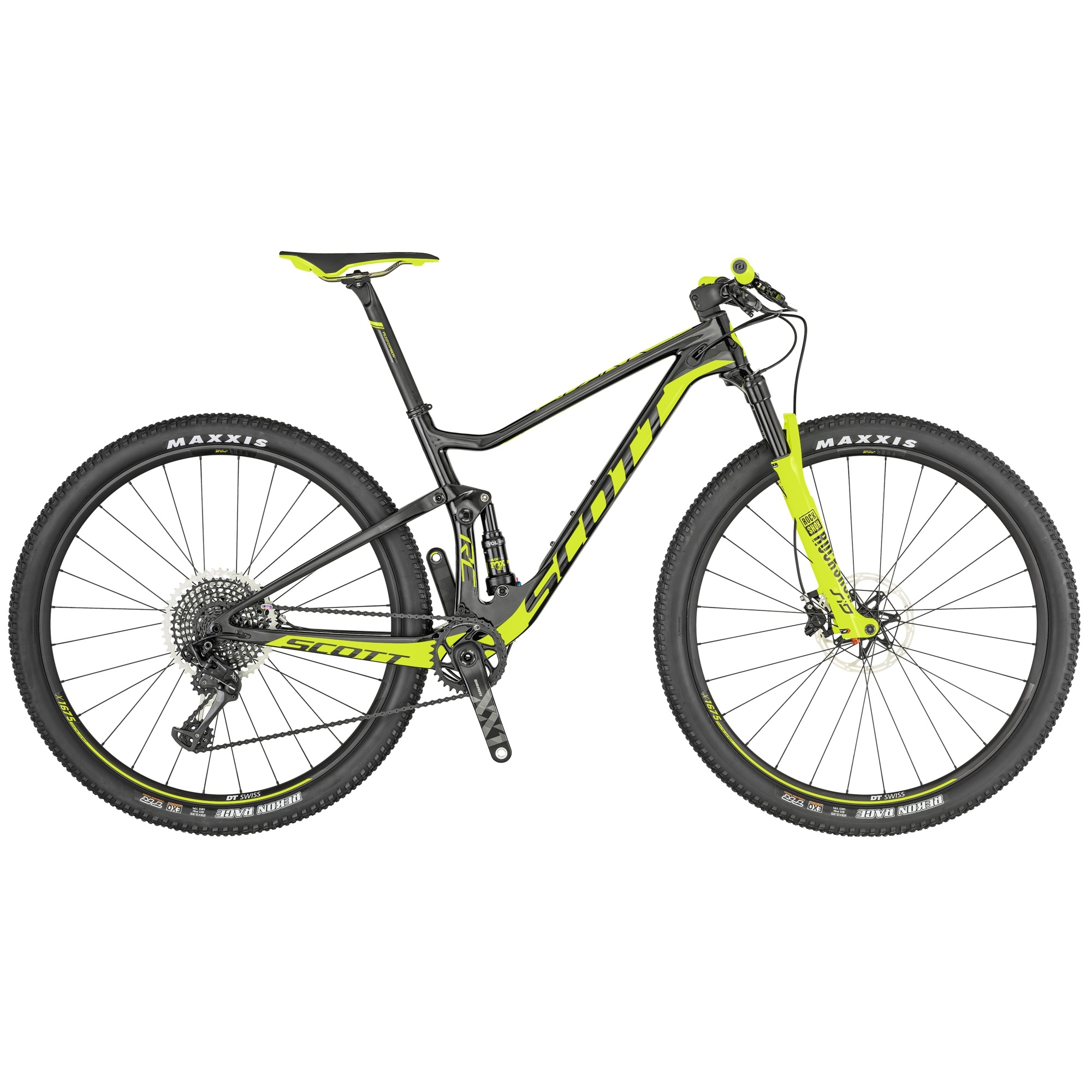

2019 SCOTT SPARK RC 900 WORLD CUP

產品規格

車架	Spark RC Carbon / IMP technology / HMX 1x optimized / BB92 / Carbon SMC Link Carbon swingarm / SW dropouts for Boost 12x148mm TBC Trunnion Box Construction
前叉	RockShox SID RL3 Air custom Charger Damper with 3-Modes 15x110mm Maxle Stealth / Tapered steerer / Lockout / Reb. Adj. 100mm travel
後避震	FOX NUDE EVOL Trunnion SCOTT custom w. travel / geo adj. 3 modes: Lockout-Traction Control-Descend DPS / Reb. Adj./ Travel 100-70-Lockout / 165X40mm
線控套件	SCOTT TwinLoc Suspension System / below Bar Remote 3 modes / integ. Grip clamp
頭碗	Syncros FL1.5 Drop in / Tapered 1.5"-1 1/8" Ti bearing diameter size 42mm and 52mm
後變速器	SRAM XX1 / Eagle 12 Speed
前變速器	n/a
變速把手	SRAM X01 Eagle Trigger
碟煞系統	SRAM Level TLM Disc / tool free reach adj 180/F and 160/R mm Centerline CLX Rotor
曲柄組	SRAM XX1 DUB Eagle Boost Carbon crankarm QF 168 / 32T
導鏈器	SCOTT custom
五通中軸 (BB)	SRAM DUB PF integrated / shell 41x92mm
把手	Syncros Fraser iC SL Carbon / 9° / 720mm / Syncros Pro lock-on grips / Garmin mount
座管	Syncros FL1.0 Carbon 10mm offset / 31.6x400mm
座墊	Syncros XR1.5 / Titanium rails
輪組	DT Swiss X1675 Spline CL F: 15x110mm, R: 12x148mm Boost 25mm Tubeless ready rim / 28H / XD Ratchet System & RWS w/Removable Lever with Tool
鏈條	SRAM PCXX1 Black Eagle
飛輪	SRAM X01 / XG1295 / 10-50 T
外胎	Maxxis Rekon Race / 2.35" / 120TPI Kevlar Bead TR Tubeless Ready / EXO Syncros Eco Sealant
選配	Dropper Post ready
配件	Transport Axle
成車重量 KG	10.30
成車建議售價	NT$225,000

車架幾何

		S		M		L		XL
A	HEAD TUBE ANGLE	68.5 °		68.5 °		68.5 °		68.5 °
B	HEAD TUBE LENGTH	95.0 MM	3.7 IN	95.0 MM	3.7 IN	105.0 MM	4.1 IN	115.0 MM	4.5 IN
C	TOP TUBE HORIZONTAL	570.0 MM	22.4 IN	600.0 MM	23.6 IN	630.0 MM	24.8 IN	650.0 MM	25.6 IN
D	STANDOVER HEIGHT	739.0 MM	29.1 IN	737.0 MM	29.0 IN	756.0 MM	29.8 IN	787.0 MM	31.0 IN
E	BB OFFSET	-50.5 MM	-2.0 IN	-50.5 MM	-2.0 IN	-50.5 MM	-2.0 IN	-50.5 MM	-2.0 IN
F	BB HEIGHT	319.5 MM	12.6 IN	319.5 MM	12.6 IN	319.5 MM	12.6 IN	319.5 MM	12.6 IN
G	WHEEL BASE	1,097.7 MM	43.2 IN	1,127.7 MM	44.4 IN	1,158.6 MM	45.6 IN	1,179.6 MM	46.4 IN
H	BB CENTER TO TOPTUBE CENTER
I	BB CENTER TO TOP OF SEATTUBE	410.0 MM	16.1 IN	440.0 MM	17.3 IN	490.0 MM	19.3 IN	540.0 MM	21.3 IN
J	SEAT ANGLE	73.8 °		73.8 °		73.8 °		73.8 °
K	CHAINSTAY	435.0 MM	17.1 IN	435.0 MM	17.1 IN	435.0 MM	17.1 IN	435.0 MM	17.1 IN
L	REACH	399.5 MM	15.7 IN	429.5 MM	16.9 IN	456.8 MM	18.0 IN	474.1 MM	18.7 IN
M	STACK	586.9 MM	23.1 IN	586.9 MM	23.1 IN	596.2 MM	23.5 IN	605.5 MM	23.8 IN
N	STEM LENGTH	60.0 MM	2.4 IN	70.0 MM	2.8 IN	80.0 MM	3.1 IN	90.0 MM	3.5 IN
0	TRAIL	90.9 MM	3.6 IN	90.9 MM	3.6 IN	90.9 MM	3.6 IN	90.9 MM	3.6 IN
