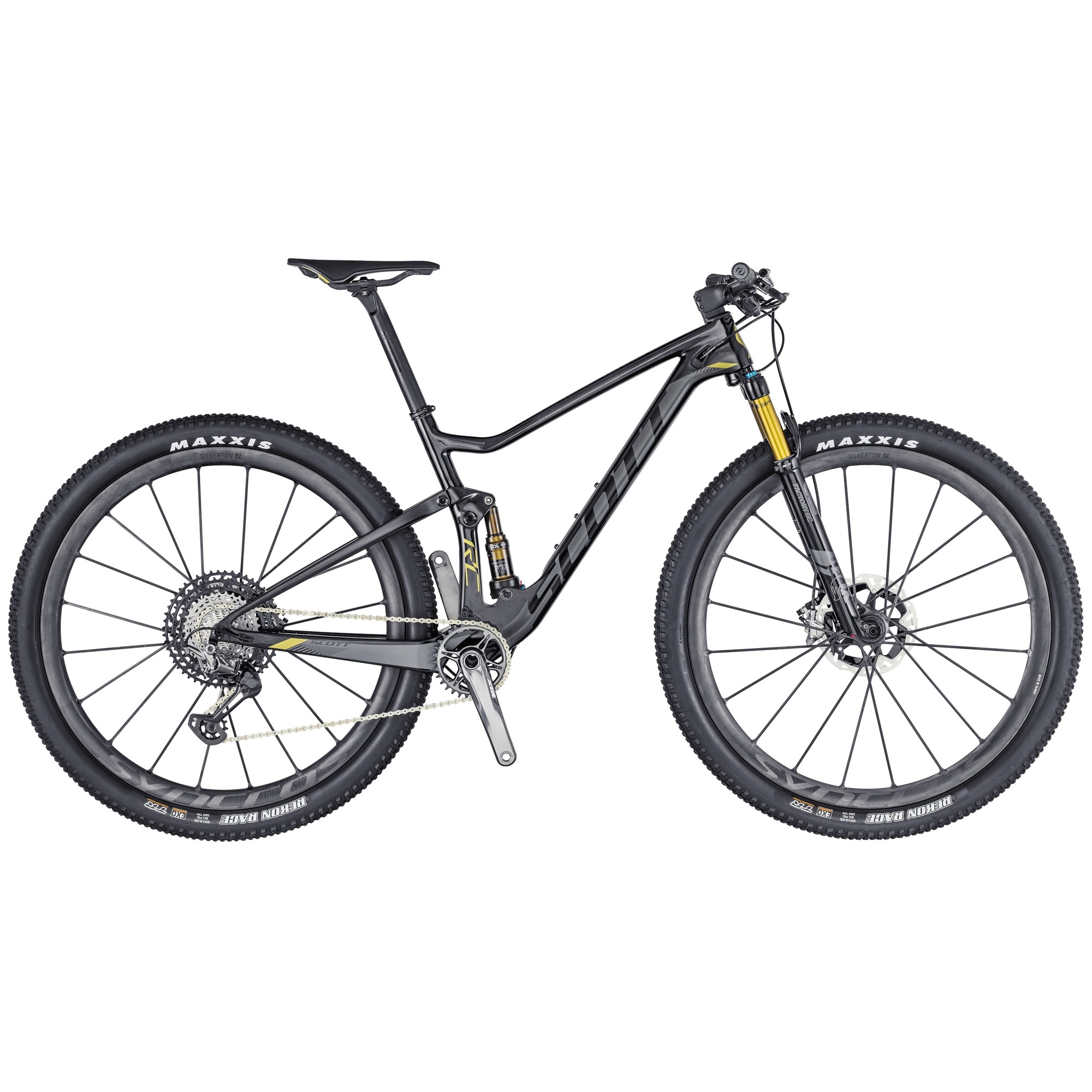

2019 SCOTT SPARK RC 900 SL

超輕量X職業競賽級碳纖29吋輪徑全避震登山車


SCOTT再次打破自己締造的全球最輕紀錄,全新SPARK RC 900 SL車架組包含後避震器僅重1779克,採用家族中最輕量與最強韌的碳纖紗HMX-SL,以SCOTT獨家的智慧型碳纖疊層EvoLap科技打造完美車體,全新搭載單轉點碳纖搖臂及Trunnion後避震器固定座,這個嶄新的車架平台設計創造了市面上最短的後避震結構總成,搭配1X單片大盤驅動設定以及100mm的前後避震行程規格,加上專利的TwinLoc前後三段避震搖控把手,取得了最高效率的踩踏特質以及更適合競賽的優化設定。全新的SPARK RC 900也幫助里約奧運金牌得主Nino Schurter在2017年創下史上第一次世界盃年度6/6全勝紀錄,更再度衛冕世界冠軍穿上珍貴的彩虹衫。


車架尺寸:S / M / L / XL
建議售價:成車NT$ 365,000 / 車架組NT$ 225,000
※ 本車款採取預約接單制



產品規格

車架

Spark RC Carbon / IMP technology / HMX SL

1x optimized / BB92 / Carbon SMC Link

Carbon swingarm / SW dropouts for Boost 12x148mm

TBC Trunnion Box Construction

lightest frame 1799g (w/shock)

前叉

FOX 32 SC Float Factory Air / Kashima

FIT4 3-Modes with low Speed adj. / Kabolt 15x110mm axle

tapered steerer / Lockout / Reb. Adj.

100mm travel

後避震

FOX NUDE EVOL Trunnion

SCOTT custom w. travel / geo adj.

3 modes: Lockout-Traction Control-Descend

DPS / Kashima / Reb. Adj.

Travel 100-70-Lockout / 165X40mm

線控套件

SCOTT TwinLoc Suspension System / below Bar Remote

3 modes / integ. Grip clamp

頭碗

Syncros FL1.5 Drop in / Tapered 1.5"-1 1/8"

Ti bearing diameter size 42mm and 52mm

後變速器

Shimano XTR RD-M9100 SGS

Shadow Plus / 12 Speed

前變速器

n/a

變速把手

Shimano XTR SL-M9100-I / Rapidfire Plus

2 way release / Ispec EV clamp

碟煞系統

Shimano XTR M9100 Disc

180/F and 160/R mm RT-MT900 CL Rotor

曲柄組

Shimano XTR FC-M9120-1B / Hollowtech 2

32T

導鏈器

SCOTT custom

五通中軸
(BB)

Shimano SM-BB94-41A / shell 41x92mm

把手

Syncros Fraser iC SL Carbon

/ 9° / 720mm / Syncros Pro lock-on grips

/ Garmin mount

座管

Syncros FL1.0 SL Carbon

10mm offset / 31.6x400mm

座墊

Syncros XR1.0 SL / Carbon rails

輪組

Syncros Silverton 1.0 SL CL full carbon

F: 15x110mm, R: 12x148mm Boost

26mm Tubeless ready rim / DT Swiss 190 Ratchet System & XTR Driver / DT RWS w/removable lever with tool

鏈條

Shimano CN-M9100

飛輪

Shimano XTR CS-M9100-12 / 10-51 T

外胎

Maxxis Rekon Race / 2.35" / 120TPI Kevlar Bead

TR Tubeless Ready / EXO

Syncros Eco Sealant

選配

Dropper Post ready

配件

Transport Axle

成車重量 KG

9.50

車架

建議售價

NT$225,000(含避震前叉)

成車

建議售價

NT$365,000

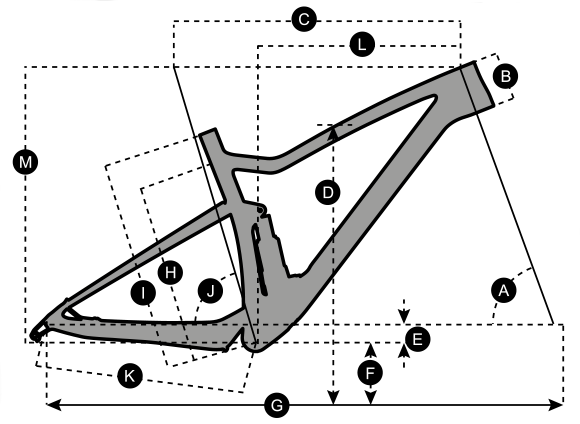

車架幾何



S



M



L



XL



A

HEAD TUBE ANGLE

68.5 °



68.5 °



68.5 °



68.5 °



B

HEAD TUBE LENGTH

95.0 MM

3.7 IN

95.0 MM

3.7 IN

105.0 MM

4.1 IN

115.0 MM

4.5 IN

C

TOP TUBE HORIZONTAL

570.0 MM

22.4 IN

600.0 MM

23.6 IN

630.0 MM

24.8 IN

650.0 MM

25.6 IN

D

STANDOVER HEIGHT

739.0 MM

29.1 IN

737.0 MM

29.0 IN

756.0 MM

29.8 IN

787.0 MM

31.0 IN

E

BB OFFSET

-50.5 MM

-2.0 IN

-50.5 MM

-2.0 IN

-50.5 MM

-2.0 IN

-50.5 MM

-2.0 IN

F

BB HEIGHT

319.5 MM

12.6 IN

319.5 MM

12.6 IN

319.5 MM

12.6 IN

319.5 MM

12.6 IN

G

WHEEL BASE

1,097.7 MM

43.2 IN

1,127.7 MM

44.4 IN

1,158.6 MM

45.6 IN

1,179.6 MM

46.4 IN

H

BB CENTER TO TOPTUBE CENTER



I

BB CENTER TO TOP OF SEATTUBE

410.0 MM

16.1 IN

440.0 MM

17.3 IN

490.0 MM

19.3 IN

540.0 MM

21.3 IN

J

SEAT ANGLE

73.8 °



73.8 °



73.8 °



73.8 °



K

CHAINSTAY

435.0 MM

17.1 IN

435.0 MM

17.1 IN

435.0 MM

17.1 IN

435.0 MM

17.1 IN

L

REACH

399.5 MM

15.7 IN

429.5 MM

16.9 IN

456.8 MM

18.0 IN

474.1 MM

18.7 IN

M

STACK

586.9 MM

23.1 IN

586.9 MM

23.1 IN

596.2 MM

23.5 IN

605.5 MM

23.8 IN

N

STEM LENGTH

60.0 MM

2.4 IN

70.0 MM

2.8 IN

80.0 MM

3.1 IN

90.0 MM

3.5 IN

0

TRAIL

90.9 MM

3.6 IN

90.9 MM

3.6 IN

90.9 MM

3.6 IN

90.9 MM

3.6 IN
