2019 SCOTT SPARK PRO 700

競賽級碳纖27.5吋輪徑全避震登山車


全新FUTURE PRO明日之星系列以27.5”輪徑重新詮釋經典越野車款SPARK,並期待年輕的您能夠使用與世界冠軍戰駒完全相同的車體設計,採用輕量級HMF碳纖紗,以SCOTT獨家的智慧型碳纖疊層EvoLap科技打造完美車體,搭載單轉點搖臂及Trunnion後避震器固定座,這個嶄新的車架平台設計,創造了市面上最短的後避震結構總成,可搭配1X或2X大盤驅動設定以及120mm的前後避震行程規格,加上專利的TwinLoc前後同步三段避震搖控把手,取得了最高效率的踩踏特質以及更適合競賽的優化設定,無論是道路競速或是山林越野,全新的SPARK PRO 700幫助您挑戰巔峰極限。

車架尺寸:S SIZE
建議售價:成車NT$ 128,000

產品規格

車架

Spark 27.5" Carbon / IMP technology / HMF Mainframe

BB92 / Alloy SL 6011 swingarm

SW dropouts for Boost 12x148mm

TBC Trunnion box construction

前叉

FOX 32 Float Rhythm Air

Grip 3 / 3-Modes / 15x110mm QR axle / tapered steerer

Reb. Adj. / Lockout / 120mm travel

後避震

FOX NUDE EVOL Trunnion

SCOTT Light Tune w. travel / geo adj.

3 modes: Lockout-Traction Control-Descend

DPS / Reb. Adj. / Travel 120-85-Lockout / 165X45mm

線控套件

SCOTT TwinLoc TSP Technology

Suspension-Seatpost Remote

below Bar / 3 modes / integ. Grip clamp

頭碗

Syncros Pro Drop in / Tapered 1.5"-1 1/8"

bearing diameter size 42mm and 52mm

後變速器

SRAM NX / Eagle 12 Speed

前變速器

n/a

變速把手

SRAM NX Eagle Trigger

碟煞系統

Shimano SLX M7000 Disc

180mm F&R SM-RT66 Rotor

曲柄組

SRAM NX Eagle DUB Boost

30T

導鏈器

SCOTT custom

五通中軸
(BB)

SRAM DUB PF integrated / shell 41x92mm

把手

Syncros FL2.0 T-Bar / Alloy 6061

T shape Flat / 9° / 700mm

Syncros Pro lock-on grips

龍頭

Syncros FL2.0 / 6061 Alloy

6° / integrated Top Cup / 31.8mm / 1 1/8"

座管

Syncros Dropper 2.0 Remote

31.6mm / S size 100mm

座墊

Syncros XR2.0 / CROM rails

輪組

Syncros Silverton 2.5 6 Bolt

F: 15x110mm, R: 12x148mm Boost

25mm Tubeless ready rim / 28H / XD / DT RWS

鏈條

SRAM CN NX Eagle

飛輪

SRAM NX / XG1230 / 11-50 T

外胎

Maxxis Forekaster / 27.5x2.35" / 120TPI Kevlar Bead

TR Tubeless Ready / EXO 3C maxx Terra

成車重量 KG

12.64

成車

建議售價

NT$128,000

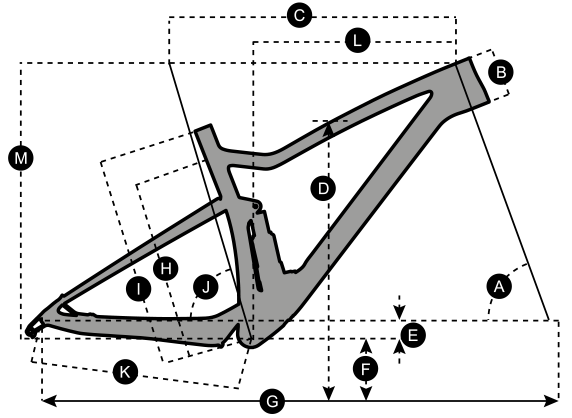

車架幾何



S



A

HEAD TUBE ANGLE

67.0 °



B

HEAD TUBE LENGTH

100.0 MM

3.9 IN

C

TOP TUBE HORIZONTAL

575.0 MM

22.6 IN

D

STANDOVER HEIGHT

725.0 MM

28.5 IN

E

BB OFFSET

-26.0 MM

-1.0 IN

F

BB HEIGHT

325.5 MM

12.8 IN

G

WHEEL BASE

1,115.2 MM

43.9 IN

H

BB CENTER TO TOPTUBE CENTER

345.0 MM

13.6 IN

I

BB CENTER TO TOP OF SEATTUBE

410.0 MM

16.1 IN

J

SEAT ANGLE

73.8 °



K

CHAINSTAY

428.0 MM

16.9 IN

L

REACH

409.7 MM

16.1 IN

M

STACK

568.9 MM

22.4 IN

N

STEM LENGTH

50.0 MM

2.0 IN

0

TRAIL

101.4 MM

4.0 IN
