車架

Scale RC Carbon / IMP technology / HMX

1x optimized / BB92 / SW dropouts for Boost 12x148mm

SDS2 advanced Shock & Standing Damping System

ICCR Cable routing

前叉

RockShox SID RL3 Air

custom Charger Damper with 3-Modes

15x110mm Maxle Stealth / Tapered steerer / Lockout / Reb. Adj.

100mm travel

線控套件

SCOTT RideLoc Technology / below bar remote

2 modes / integ. Grip clamp

頭碗

Syncros FL1.5 Drop in / Tapered 1.5"-1 1/8"

Ti bearing diameter size 42mm and 52mm

後變速器

SRAM XX1 / Eagle 12 Speed

前變速器

n/a

變速把手

SRAM X01 EagleTrigger

碟煞系統

SRAM Level TLM Disc / tool free reach adj

180/F and 160/R mm Centerline CLX Rotor

曲柄組

SRAM XX1 DUB Eagle Boost Carbon crankarm

QF 168 / 32T

導鏈器

SCOTT custom

五通中軸
(BB)

SRAM DUB PF integrated / shell 41x92mm

把手

Syncros Fraser iC SL Carbon

/ 9° / 720mm / Syncros Pro lock-on grips

Garmin mount

座管

Syncros FL1.0 Carbon

10mm offset / 31.6x400mm

座墊

Syncros XR1.5 / Titanium rails

輪組

DT Swiss X1675 Spline CL

F: 15x110mm, R: 12x148mm Boost

25mm Tubeless ready rim / 28H / XD

Ratchet System & RWS w/Removable Lever with Tool

鏈條

SRAM PCXX1 Black Eagle

飛輪

SRAM X01 / XG1295 / 10-50 T

外胎

Maxxis Rekon Race / 2.25" / 120TPI Kevlar Bead

TR Tubeless Ready / EXO

Syncros Eco Sealant

配件

Transport Axle

成車重量 KG

9.30

成車

建議售價

NT$199,000

S

M

L

XL

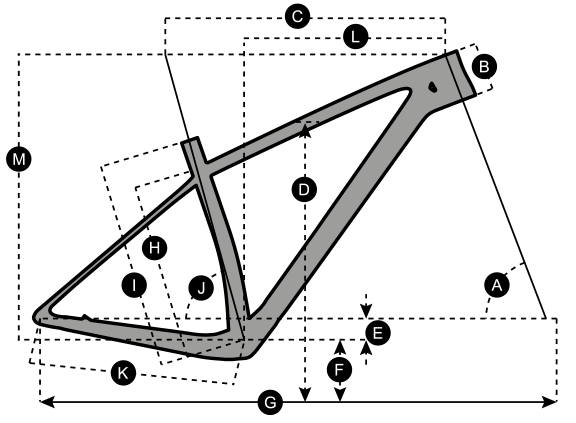

A

HEAD TUBE ANGLE

69.5 °

69.5 °

69.5 °

69.5 °

B

HEAD TUBE LENGTH

95.0 MM

3.7 IN

100.0 MM

3.9 IN

115.0 MM

4.5 IN

125.0 MM

4.9 IN

C

TOP TUBE HORIZONTAL

575.0 MM

22.6 IN

600.0 MM

23.6 IN

625.0 MM

24.6 IN

650.0 MM

25.6 IN

D

STANDOVER HEIGHT

743.0 MM

29.3 IN

774.0 MM

30.5 IN

800.0 MM

31.5 IN

835.1 MM

32.9 IN

E

BB OFFSET

-58.0 MM

-2.3 IN

-58.0 MM

-2.3 IN

-58.0 MM

-2.3 IN

-58.0 MM

-2.3 IN

F

BB HEIGHT

312.0 MM

12.3 IN

312.0 MM

12.3 IN

312.0 MM

12.3 IN

312.0 MM

12.3 IN

G

WHEEL BASE

1,076.4 MM

42.4 IN

1,101.8 MM

43.4 IN

1,127.9 MM

44.4 IN

1,153.7 MM

45.4 IN

H

BB CENTER TO TOPTUBE CENTER

325.0 MM

12.8 IN

375.0 MM

14.8 IN

415.0 MM

16.3 IN

465.0 MM

18.3 IN

I

BB CENTER TO TOP OF SEATTUBE

390.0 MM

15.4 IN

440.0 MM

17.3 IN

480.0 MM

18.9 IN

530.0 MM

20.9 IN

J

SEAT ANGLE

73.6 °

73.6 °

73.6 °

73.6 °

K

CHAINSTAY

425.0 MM

16.7 IN

425.0 MM

16.7 IN

425.0 MM

16.7 IN

425.0 MM

16.7 IN

L

REACH

398.7 MM

15.7 IN

422.3 MM

16.6 IN

443.2 MM

17.4 IN

465.5 MM

18.3 IN

M

STACK

599.0 MM

23.6 IN

603.6 MM

23.8 IN

617.7 MM

24.3 IN

627.1 MM

24.7 IN

N

STEM LENGTH

60.0 MM

2.4 IN

70.0 MM

2.8 IN

80.0 MM

3.1 IN

90.0 MM

3.5 IN

0

TRAIL

83.9 MM

3.3 IN

83.9 MM

3.3 IN

83.9 MM

3.3 IN

83.9 MM

3.3 IN
