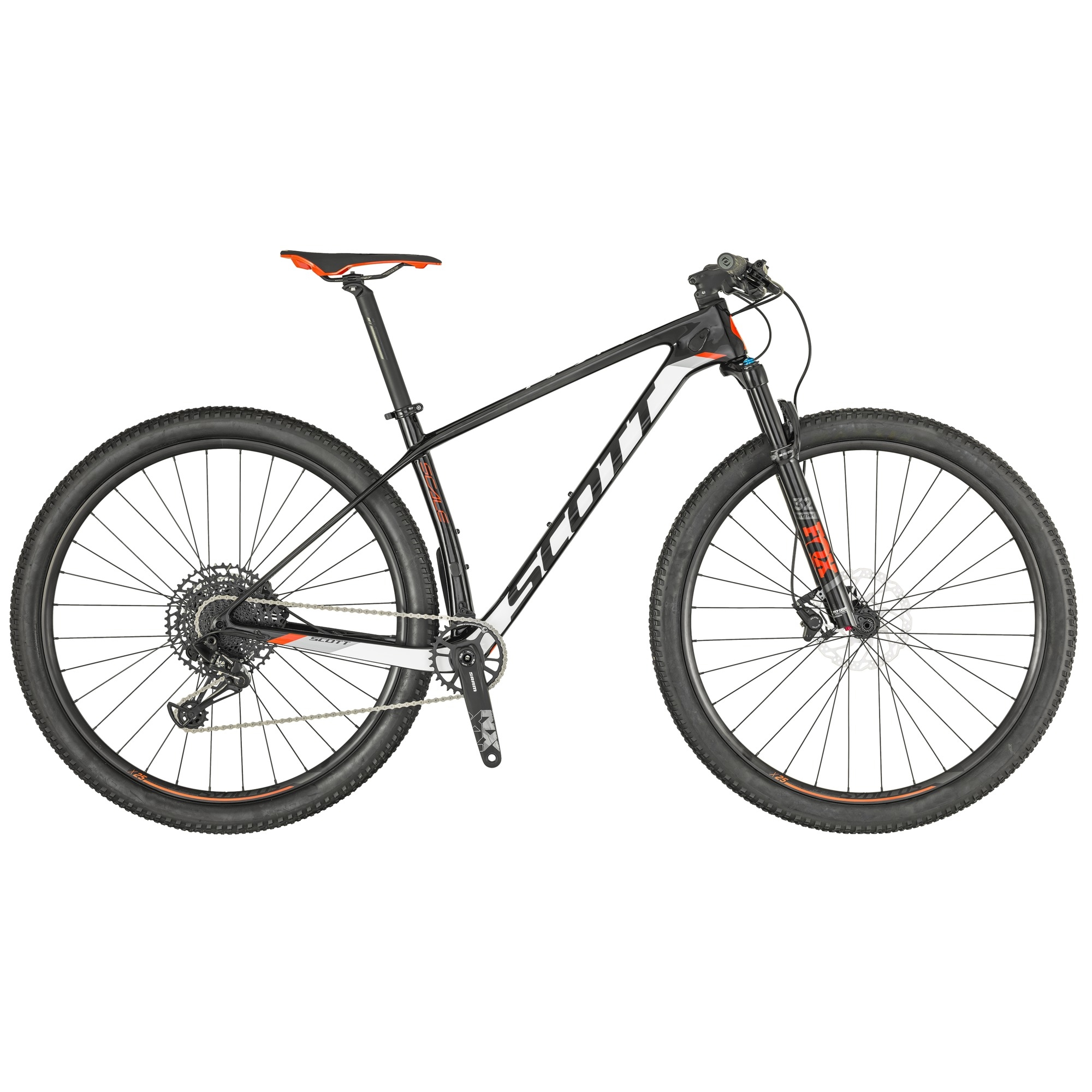

2019 SCOTT SCALE  930

競賽級 碳纖鑽石型29吋輪徑登山車


SCOTT再度超越自我,打造世界最輕的鑽石型登山車架,立下難以超越的新標準,SCALE 930由HMF輕量級碳纖紗打造,以SCOTT獨家的智慧型碳纖疊層EvoLap科技,再次突破不可思議的輕量極限,搭載1X單片大盤驅動的平台設計與第二代SDS2震波吸收系統的車體結構,無論是站立抽車或是乘坐踩踏都能感受到不同吸震效能,以Boost規格的花鼓加寬尺寸為設計基礎,提供了胎寬的容許值,並且讓車體剛性更升級,將Hardtail登山車科技提升至全新境界。


車架尺寸:S / M / L / XL
建議售價:成車NT$ 69,500



產品規格

車架

Scale 3 Carbon / IMP technology / HMF

BB92 / SW DM dropouts for Boost 12x148mm

SDS2 advanced Shock & Standing Damping System

ICCR Cable routing

前叉

FOX 32 Float Rhythm

Grip 3 / 3-Modes / 15x110mm QR axle / tapered steerer

Reb. Adj. / Lockout / 100mm travel

線控套件

SCOTT RideLoc Technology / below bar remote

3 modes / integ. Grip clamp

頭碗

Syncros Pro Drop in / Tapered 1.5"-1 1/8"

bearing diameter size 42mm and 52mm

後變速器

SRAM NX / Eagle 12 Speed

前變速器

n/a

變速把手

SRAM NX Eagle Trigger

碟煞系統

Shimano MT400 Disc

180/F and 160/R mm SM-RT54 CL Rotor

曲柄組

SRAM NX Eagle DUB Boost

32T

導鏈器

SCOTT custom

五通中軸
(BB)

SRAM DUB PF integrated / shell 41x92mm

把手

Syncros FL2.0 T-Bar / Alloy 6061

T shape Flat / 9° / 720mm

Syncros Pro lock-on grips

龍頭

Syncros FL2.0

6° / integrated Spacer & Top Cup

6061 Alloy / 31.8mm / 1 1/8"

座管

Syncros FL2.5

31.6x400mm

座墊

Syncros XR2.0 / CROM rails

前花鼓

Shimano HB-MT400-B CL / 15x110mm

後花鼓

Shimano FH-MT400-B CL / Boost 12x148mm

鏈條

SRAM CN NX Eagle

飛輪

SRAM NX / XG1230 / 11-50 T

幅條

Stainless Black 15G / 1.8mm

輪框

Syncros X-25 / 32H / 25mm

Tubeless ready

外胎

Maxxis Rekon Race / 2.25" / 60TPI Kevlar Bead

TR Tubeless Ready / EXO

成車重量 KG

11.30

成車

建議售價

NT$69,500

車架幾何



S



M



L



XL



A

HEAD TUBE ANGLE

69.5 °



69.5 °



69.5 °



69.5 °



B

HEAD TUBE LENGTH

95.0 MM

3.7 IN

100.0 MM

3.9 IN

115.0 MM

4.5 IN

125.0 MM

4.9 IN

C

TOP TUBE HORIZONTAL

575.0 MM

22.6 IN

600.0 MM

23.6 IN

625.0 MM

24.6 IN

650.0 MM

25.6 IN

D

STANDOVER HEIGHT

743.0 MM

29.3 IN

774.0 MM

30.5 IN

800.0 MM

31.5 IN

835.1 MM

32.9 IN

E

BB OFFSET

-58.0 MM

-2.3 IN

-58.0 MM

-2.3 IN

-58.0 MM

-2.3 IN

-58.0 MM

-2.3 IN

F

BB HEIGHT

312.0 MM

12.3 IN

312.0 MM

12.3 IN

312.0 MM

12.3 IN

312.0 MM

12.3 IN

G

WHEEL BASE

1,076.4 MM

42.4 IN

1,101.8 MM

43.4 IN

1,127.9 MM

44.4 IN

1,153.7 MM

45.4 IN

H

BB CENTER TO TOPTUBE CENTER

325.0 MM

12.8 IN

375.0 MM

14.8 IN

415.0 MM

16.3 IN

465.0 MM

18.3 IN

I

BB CENTER TO TOP OF SEATTUBE

390.0 MM

15.4 IN

440.0 MM

17.3 IN

480.0 MM

18.9 IN

530.0 MM

20.9 IN

J

SEAT ANGLE

73.6 °



73.6 °



73.6 °



73.6 °



K

CHAINSTAY

425.0 MM

16.7 IN

425.0 MM

16.7 IN

425.0 MM

16.7 IN

425.0 MM

16.7 IN

L

REACH

398.7 MM

15.7 IN

422.3 MM

16.6 IN

443.2 MM

17.4 IN

465.5 MM

18.3 IN

M

STACK

599.0 MM

23.6 IN

603.6 MM

23.8 IN

617.7 MM

24.3 IN

627.1 MM

24.7 IN

N

STEM LENGTH

60.0 MM

2.4 IN

70.0 MM

2.8 IN

80.0 MM

3.1 IN

90.0 MM

3.5 IN

0

TRAIL

83.9 MM

3.3 IN

83.9 MM

3.3 IN

83.9 MM

3.3 IN

83.9 MM

3.3 IN
