車架

Genius Carbon / IMP technology / HMX /1x optimized

BB92 / Carbon SMC Link / Carbon swingarm

VLK Virtual 4 Link kinematic

27.5" (2.6 & 2.8) and 29" (2.4 & 2.6) tire compatible with Geo -BB adj.

SW dropouts for Boost 12x148mm

TBC Trunnion box construction

前叉

FOX 34 Float Live Valve Factory Air / Kashima

Electronic Damping system 15x110mm QR axle

44mm offset /tapered steerer / Low speed & Reb. Adj.

150mm travel

後避震

FOX Float Live Valve EVOL Trunnion

Kashima / Low speed & Reb. Adj.

Travel 150mm / 185X55mm

線控套件

FOX Live Valve Controller with Trail setting

頭碗

Syncros FL1.5 Press Fit E2 / Tapered 1.5"-1 1/8"

Ti bearing OD 50/62mm / ID 44/56mm

後變速器

SRAM XX1 / Eagle 12 Speed

前變速器

n/a

變速把手

SRAM XX1 Eagle Trigger

碟煞系統

Shimano XTR M9120 4 Piston Disc

203/F and 180/R mm RT-MT900 CL Rotor

曲柄組

SRAM XX1 DUB Eagle Boost Carbon crankarm

QF 168 / 32T

導鏈器

SCOTT custom

五通中軸
(BB)

SRAM DUB PF integrated / shell 41x92mm

把手

Syncros Hixon iC SL Carbon

12mm rise / 9° / 760mm / Syncros Pro lock-on grips

Garmin mount

座管

FOX Transfer Dropper Remote

Kashima / 31.6mm / S size 100mm / M 125mm / L & XL 150mm

座墊

Syncros Tofino 1.0 / Carbon rails

輪組

Syncros Revelstoke 1.0 CL

F: 15x110mm, R: 12x148mm Boost

31mm Tubeless ready carbon rim 28H / XD Driver / DT RWS w/Removable Lever with Tool

鏈條

SRAM PCXX1 Gold Eagle

飛輪

SRAM XX1 / XG129"9 / Gold / 10-50 T

外胎

Maxxis Rekon / 29x26" / 120TPI Kevlar Bead

EXO / TR Tubeless ready

3C Maxx Terra / Syncros Eco Sealant

選配

Syncros Trail Fender

配件

Transport Axle

成車重量 KG

12.40

成車

建議售價

NT$365,000

S / 900

S / 700

M / 900

M / 700

L / 900

L / 700

XL / 900

XL / 700

LOW BB Setting

HIGH BB Setting

LOW BB Setting

HIGH BB Setting

LOW BB Setting

HIGH BB Setting

LOW BB Setting

HIGH BB Setting

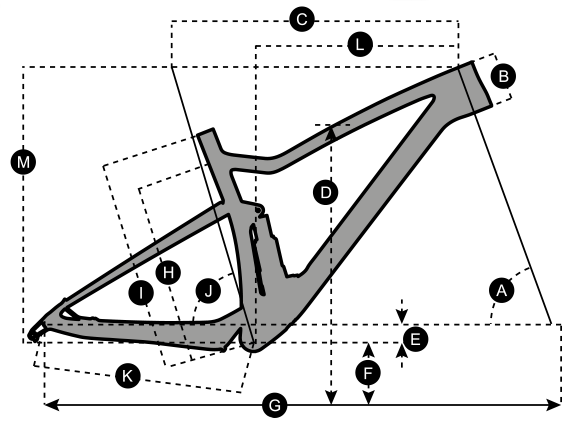

A

HEAD TUBE ANGLE

65.0 °

65.6 °

65.0 °

65.6 °

65.0 °

65.6 °

65.0 °

65.6 °

B

HEAD TUBE LENGTH

95.0 MM

3.7 IN

95.0 MM

3.7 IN

95.0 MM

3.7 IN

95.0 MM

3.7 IN

110.0 MM

4.3 IN

110.0 MM

4.3 IN

125.0 MM

4.9 IN

125.0 MM

4.9 IN

C

TOP TUBE HORIZONTAL

569.7 MM

22.4 IN

568.2 MM

22.4 IN

602.8 MM

23.7 IN

601.2 MM

23.7 IN

633.4 MM

24.9 IN

631.8 MM

24.9 IN

670.1 MM

26.4 IN

668.4 MM

26.3 IN

D

STANDOVER HEIGHT

E

BB OFFSET

-27.4 MM

-1.1 IN

-20.0 MM

-0.8 IN

-27.5 MM

-1.1 IN

-20.0 MM

-0.8 IN

-27.6 MM

-1.1 IN

-20.0 MM

-0.8 IN

-27.8 MM

-1.1 IN

-20.0 MM

-0.8 IN

F

BB HEIGHT

346.1 MM

13.6 IN

340.0 MM

13.4 IN

346.0 MM

13.6 IN

340.0 MM

13.4 IN

345.9 MM

13.6 IN

340.0 MM

13.4 IN

345.7 MM

13.6 IN

340.0 MM

13.4 IN

G

WHEEL BASE

1,165.9 MM

45.9 IN

1,164.6 MM

45.9 IN

1,198.9 MM

47.2 IN

1,197.6 MM

47.1 IN

1,232.1 MM

48.5 IN

1,230.8 MM

48.5 IN

1,271.3 MM

50.1 IN

1,270.0 MM

50.0 IN

H

BB CENTER TO TOPTUBE CENTER

I

BB CENTER TO TOP OF SEATTUBE

410.0 MM

16.1 IN

410.0 MM

16.1 IN

440.0 MM

17.3 IN

440.0 MM

17.3 IN

480.0 MM

18.9 IN

480.0 MM

18.9 IN

520.0 MM

20.5 IN

520.0 MM

20.5 IN

J

SEAT ANGLE

74.7 °

75.3 °

74.7 °

75.3 °

74.8 °

75.3 °

74.8 °

75.3 °

K

CHAINSTAY

438.0 MM

17.2 IN

436.0 MM

17.2 IN

438.0 MM

17.2 IN

436.0 MM

17.2 IN

438.0 MM

17.2 IN

436.0 MM

17.2 IN

438.0 MM

17.2 IN

436.0 MM

17.2 IN

L

REACH

405.9 MM

16.0 IN

412.0 MM

16.2 IN

439.1 MM

17.3 IN

445.0 MM

17.5 IN

466.1 MM

18.4 IN

472.0 MM

18.6 IN

499.2 MM

19.7 IN

505.0 MM

19.9 IN

M

STACK

599.7 MM

23.6 IN

595.5 MM

23.4 IN

599.9 MM

23.6 IN

595.5 MM

23.4 IN

613.7 MM

24.2 IN

609.2 MM

24.0 IN

627.5 MM

24.7 IN

622.8 MM

24.5 IN

N

STEM LENGTH

40.0 MM

1.6 IN

40.0 MM

1.6 IN

50.0 MM

2.0 IN

50.0 MM

2.0 IN

50.0 MM

2.0 IN

50.0 MM

2.0 IN

50.0 MM

2.0 IN

50.0 MM

2.0 IN

0

TRAIL

117.7 MM

4.6 IN

107.3 MM

4.2 IN

117.6 MM

4.6 IN

107.3 MM

4.2 IN

117.5 MM

4.6 IN

107.3 MM

4.2 IN

117.4 MM

4.6 IN

107.3 MM

4.2 IN
