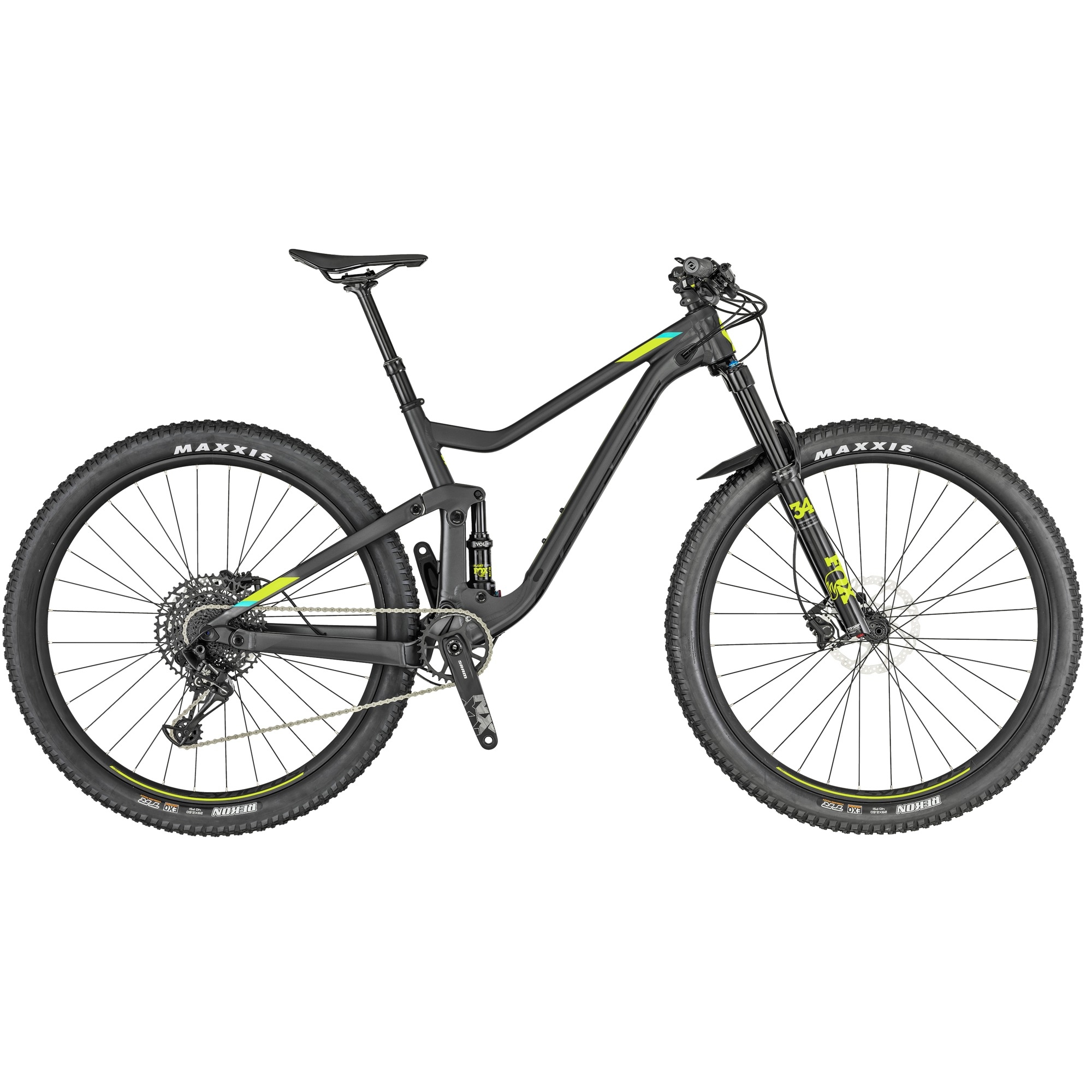

2019 SCOTT GENIUS 750

競賽級X林道越野鋁合金全避震登山車


林道霸主‧天才革命再進化!All New GENIUS延續了世界冠軍戰駒SPARK所搭載的Turnnion後避震器座,這個設計能夠創造出最短的後避震結構總成,也是目前SCOTT家族史上最先進的車架結構,全新GENIUS將下擺式連桿,改成雙轉點搖臂搭配Trunnion後避震器座,並且將後避震器上下反置,比較碩大的那一端朝下,讓大部分的重量落於車架較低處,藉此創造出數個優點,由Trunnion後避震器座的寬距、下管、主轉點三者完美整合,讓車體發揮最大的潛力!全新GENIUS同時可以具備了27.5”和29”雙輪徑的切換功能,只要反轉裝避震器上的專屬套件,就可依照不同騎乘環境來選定對應的輪徑尺寸!

車架尺寸:S / M / L / XL
建議售價:成車NT$ 99,800



產品規格

車架

Genius Alloy SL 6011

custom butted / VLK Virtual 4 Link kinematic

27.5" (2.6 & 2.8) and 29" (2.4 & 2.6) tire compatible with Geo -BB adj.

TBC Trunnion box construction / Boost 12x148mm

前叉

FOX 34 Float Performance Air

Grip 3 / 3-Modes / 15x110mm QR axle / tapered steerer

44mm offset / Reb. Adj. / Lockout / 150mm travel

後避震

FOX Float EVOL Performace Trunnion

3 modes / Lockout-Trail-Descend

DPS / Reb. Adj.

Travel 150mm / 185X55mm

線控套件

SCOTT TwinLoc TSP Technology

Suspension-Seatpost Remote

below Bar / 3 modes / integ. Grip clamp

頭碗

Syncros Pro Press Fit E2 / Tapered 1.5"-1 1/8"

OD 50/62mm / ID 44/56mm

後變速器

SRAM NX / Eagle 12 Speed

前變速器

n/a

變速把手

SRAM NX Eagle Trigger

碟煞系統

Shimano MT500 Disc

180mm F&R / SM-RT54 CL Rotor

曲柄組

SRAM NX Eagle DUB Boost

32T

五通中軸
(BB)

SRAM DUB PF integrated / shell 41x92mm

把手

Syncros FL2.0 mini Riser / Alloy 6061D.B.

12mm rise / 9° / 760mm

Syncros Pro lock-on grips

龍頭

Syncros FL2.0 / 6061 Alloy

6° / integrated Top Cup / 31.8mm / 1 1/8"

座管

Syncros Dropper 2.0 / Remote

31.6mm / S size 100mm / M 125mm / L & XL 150mm

座墊

Syncros Tofino 2.0 / CRMO rails

前花鼓

Shimano HB-MT400-B CL / 15x110mm

後花鼓

Shimano FH-MT400-B CL / Boost 12x148mm

鏈條

SRAM CN NX Eagle

飛輪

SRAM NX / XG1230 / 11-50 T

幅條

Stainless Black 15G / 1.8mm

輪框

Syncros X-30S / 32H / 30mm / Sleeve Joint

Tubeless ready

外胎

900 Series: Maxxis Rekon 29x2.6"

700 Series: Maxxis Rekon 27.5x2.8"

60TPI Kevlar Bead / EXO / TR Tubeless ready

選配

Syncros Trail Fender

成車重量 KG

14.40

成車

建議售價

NT$99,800

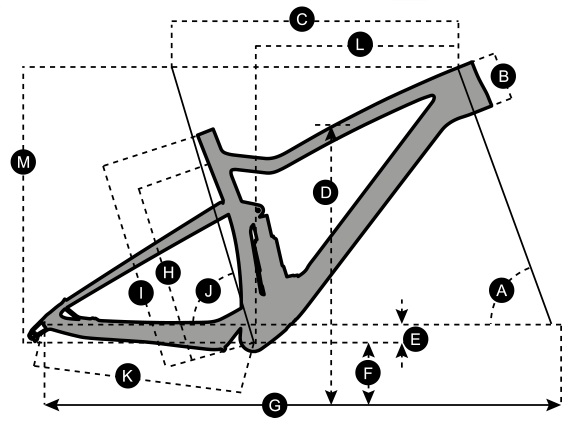

車架幾何



S / 900



S / 700



M / 900



M / 700



L / 900



L / 700



XL / 900



XL / 700




LOW BB Setting



HIGH BB Setting



LOW BB Setting



HIGH BB Setting



LOW BB Setting



HIGH BB Setting



LOW BB Setting



HIGH BB Setting



A

HEAD TUBE ANGLE

65.0 °



65.6 °



65.0 °



65.6 °



65.0 °



65.6 °



65.0 °



65.6 °



B

HEAD TUBE LENGTH

95.0 MM

3.7 IN

95.0 MM

3.7 IN

95.0 MM

3.7 IN

95.0 MM

3.7 IN

110.0 MM

4.3 IN

110.0 MM

4.3 IN

125.0 MM

4.9 IN

125.0 MM

4.9 IN

C

TOP TUBE HORIZONTAL

569.7 MM

22.4 IN

568.2 MM

22.4 IN

602.8 MM

23.7 IN

601.2 MM

23.7 IN

633.4 MM

24.9 IN

631.8 MM

24.9 IN

670.1 MM

26.4 IN

668.4 MM

26.3 IN

D

STANDOVER HEIGHT



E

BB OFFSET

-27.4 MM

-1.1 IN

-20.0 MM

-0.8 IN

-27.5 MM

-1.1 IN

-20.0 MM

-0.8 IN

-27.6 MM

-1.1 IN

-20.0 MM

-0.8 IN

-27.8 MM

-1.1 IN

-20.0 MM

-0.8 IN

F

BB HEIGHT

346.1 MM

13.6 IN

340.0 MM

13.4 IN

346.0 MM

13.6 IN

340.0 MM

13.4 IN

345.9 MM

13.6 IN

340.0 MM

13.4 IN

345.7 MM

13.6 IN

340.0 MM

13.4 IN

G

WHEEL BASE

1,165.9 MM

45.9 IN

1,164.6 MM

45.9 IN

1,198.9 MM

47.2 IN

1,197.6 MM

47.1 IN

1,232.1 MM

48.5 IN

1,230.8 MM

48.5 IN

1,271.3 MM

50.1 IN

1,270.0 MM

50.0 IN

H

BB CENTER TO TOPTUBE CENTER



I

BB CENTER TO TOP OF SEATTUBE

410.0 MM

16.1 IN

410.0 MM

16.1 IN

440.0 MM

17.3 IN

440.0 MM

17.3 IN

480.0 MM

18.9 IN

480.0 MM

18.9 IN

520.0 MM

20.5 IN

520.0 MM

20.5 IN

J

SEAT ANGLE

74.7 °



75.3 °



74.7 °



75.3 °



74.8 °



75.3 °



74.8 °



75.3 °



K

CHAINSTAY

438.0 MM

17.2 IN

436.0 MM

17.2 IN

438.0 MM

17.2 IN

436.0 MM

17.2 IN

438.0 MM

17.2 IN

436.0 MM

17.2 IN

438.0 MM

17.2 IN

436.0 MM

17.2 IN

L

REACH

405.9 MM

16.0 IN

412.0 MM

16.2 IN

439.1 MM

17.3 IN

445.0 MM

17.5 IN

466.1 MM

18.4 IN

472.0 MM

18.6 IN

499.2 MM

19.7 IN

505.0 MM

19.9 IN

M

STACK

599.7 MM

23.6 IN

595.5 MM

23.4 IN

599.9 MM

23.6 IN

595.5 MM

23.4 IN

613.7 MM

24.2 IN

609.2 MM

24.0 IN

627.5 MM

24.7 IN

622.8 MM

24.5 IN

N

STEM LENGTH

40.0 MM

1.6 IN

40.0 MM

1.6 IN

50.0 MM

2.0 IN

50.0 MM

2.0 IN

50.0 MM

2.0 IN

50.0 MM

2.0 IN

50.0 MM

2.0 IN

50.0 MM

2.0 IN

0

TRAIL

117.7 MM

4.6 IN

107.3 MM

4.2 IN

117.6 MM

4.6 IN

107.3 MM

4.2 IN

117.5 MM

4.6 IN

107.3 MM

4.2 IN

117.4 MM

4.6 IN

107.3 MM

4.2 IN
