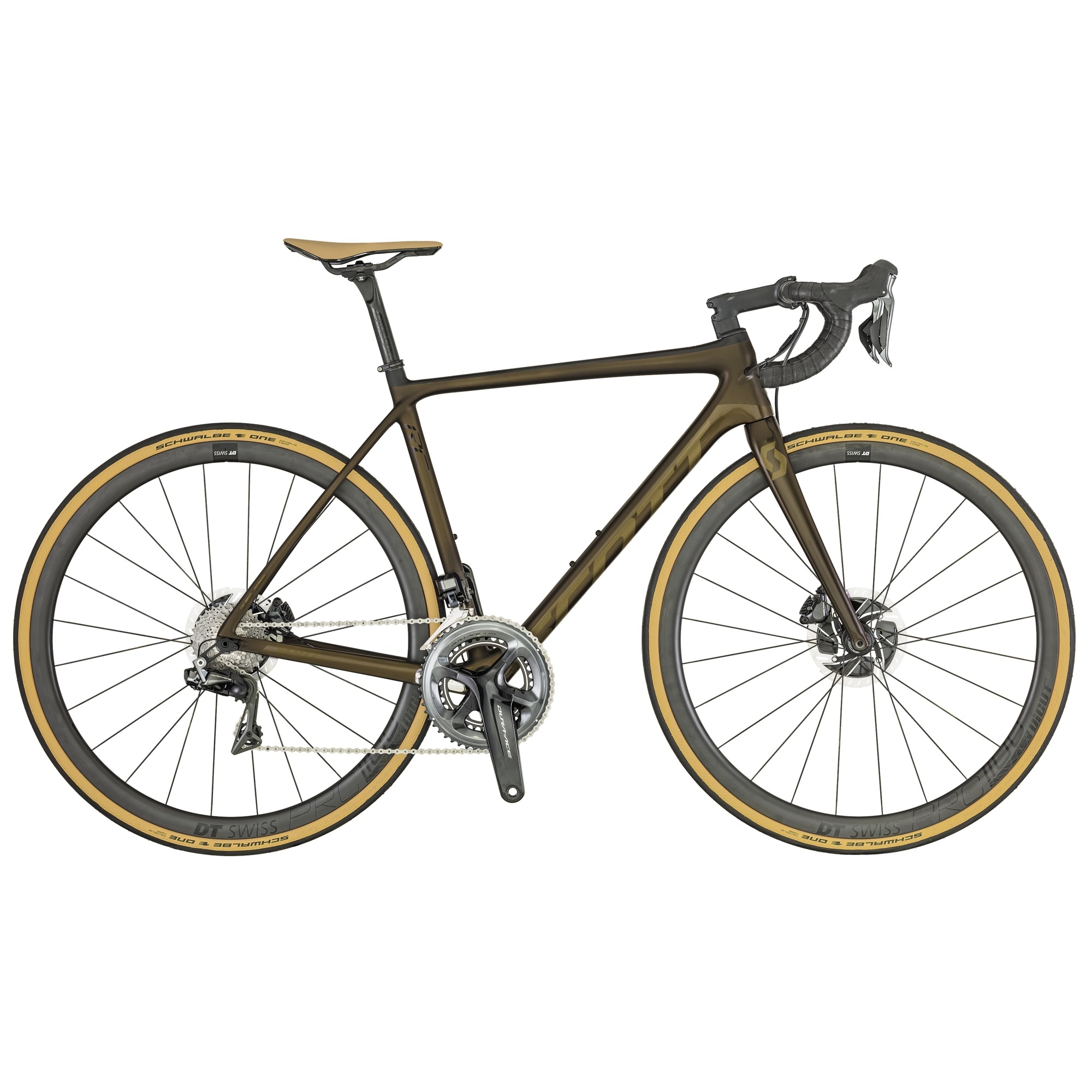

2019 SCOTT ADDICT RC PREMIUM DISC

輕引力X職業競賽級碟煞公路車


源自於職業賽事以及對輕量化的執著,ADDICT擁有純粹的競賽血液與充滿侵略性的騎乘調性,每次踩踏都能感受到它的力量與速度,是絕對的爬坡武器,更是讓人屏息以待的極輕量公路車經典,全新的ADDICT DISC的碟煞系統車體結構幾乎是重新設計的,在以碟煞制動的原則下,我們仍然必須保有輕量化的個性,改變的範圍包括在車架後三角與前叉上設定了專屬的平面式碟煞座,同時也增加了管件與輪胎的間隙以及變更走線的方式,邀請您一同體驗最新的公路車碟煞動力科技。

車架尺寸:XXS47 / XS49 / S52 / M54 / L56 / XL58 / XXL61
建議售價:成車NT$ 350,000 / 車架組NT$ 112,000
※ 台灣地區僅引進車架組



產品規格

車架

Addict Disc HMX / IMP Carbon technology

Road Race geometry / Replaceable Dropout

前叉

Addict HMX Flatmount Disc

1 1/8"-1 1/4" tapered Carbon steerer

Carbon Dropout

頭碗

Syncros Integrated

後變速器

Shimano Dura-Ace RD-R9150

22 Speed Electronic

前變速器

Shimano Dura-Ace FD-R9150

Eletronic Shift System

變速把手

Shimano Di2 ST-R9170 Disc

Electronic Shift 22 Speed

煞車系統

Shimano BR-R9170 Hyd Disc

160/F and 160/Rmm SM-RT900 CL Rotor

曲柄組

Shimano Dura-Ace FC-R9100

Hollowtech II 52x36 T

五通中軸
(BB)

Shimano SM-BB92-41B

把手

Syncros Creston SL Compact

Carbon 31.8mm

龍頭

Syncros RR1.5

1 1/8" / four Bolt 31.8mm

座管

Syncros Carbon FL1.0

27.2/350mm

座墊

Syncros Tofino T-Cutout 1.0

輪組

DT Swiss PRC 1100 Dicut db

Carbon clincher tubeless ready, Syncros Plug-in RWS

鏈條

Shimano Dura-Ace CN-HG901-11

飛輪

Shimano Dura Ace CS-R9100

11-30

外胎

Schwalbe ONE V-Guard Fold

700x28C

成車重量 KG

6.85

車架

建議售價

NT$112,000

成車

建議售價

NT$350,000

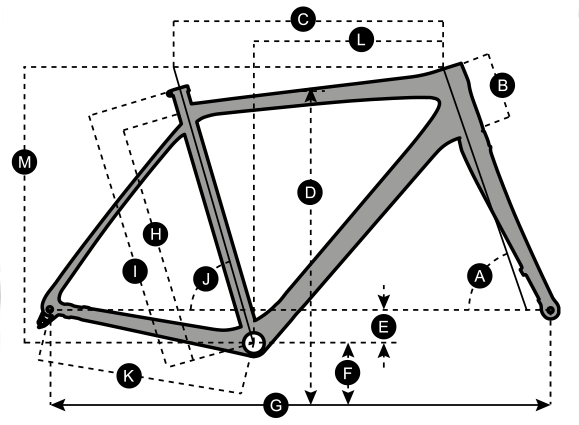

車架幾何



XXS/47



XS/49



S/52



M/54



L/56



XL/58



XXL/61



A

HEAD TUBE ANGLE

70.5 °



71.0 °



72.0 °



72.5 °



73.0 °



73.3 °



73.3 °



B

HEAD TUBE LENGTH

100.0 MM

3.9 IN

105.0 MM

4.1 IN

120.0 MM

4.7 IN

140.0 MM

5.5 IN

160.0 MM

6.3 IN

180.0 MM

7.1 IN

200.0 MM

7.9 IN

C

TOP TUBE HORIZONTAL

510.0 MM

20.1 IN

520.0 MM

20.5 IN

535.0 MM

21.1 IN

550.0 MM

21.7 IN

565.0 MM

22.2 IN

580.0 MM

22.8 IN

595.0 MM

23.4 IN

D

STANDOVER HEIGHT

721.8 MM

28.4 IN

734.7 MM

28.9 IN

757.4 MM

29.8 IN

777.0 MM

30.6 IN

796.6 MM

31.4 IN

815.9 MM

32.1 IN

839.1 MM

33.0 IN

E

BB OFFSET

-67.0 MM

-2.6 IN

-67.0 MM

-2.6 IN

-67.0 MM

-2.6 IN

-67.0 MM

-2.6 IN

-67.0 MM

-2.6 IN

-67.0 MM

-2.6 IN

-67.0 MM

-2.6 IN

F

BB HEIGHT

272.0 MM

10.7 IN

272.0 MM

10.7 IN

272.0 MM

10.7 IN

272.0 MM

10.7 IN

272.0 MM

10.7 IN

272.0 MM

10.7 IN

272.0 MM

10.7 IN

G

WHEEL BASE

977.1 MM

38.5 IN

983.1 MM

38.7 IN

985.1 MM

38.8 IN

992.0 MM

39.1 IN

999.3 MM

39.3 IN

1,008.0 MM

39.7 IN

1,017.1 MM

40.0 IN

H

BB CENTER TO TOPTUBE CENTER

410.0 MM

16.1 IN

430.0 MM

16.9 IN

460.0 MM

18.1 IN

480.0 MM

18.9 IN

500.0 MM

19.7 IN

520.0 MM

20.5 IN

550.0 MM

21.7 IN

I

BB CENTER TO TOP OF SEATTUBE

455.0 MM

17.9 IN

475.0 MM

18.7 IN

505.0 MM

19.9 IN

525.0 MM

20.7 IN

545.0 MM

21.5 IN

565.0 MM

22.2 IN

596.0 MM

23.5 IN

J

SEAT ANGLE

74.5 °



74.5 °



74.0 °



73.6 °



73.3 °



73.0 °



72.5 °



K

CHAINSTAY

410.0 MM

16.1 IN

410.0 MM

16.1 IN

410.0 MM

16.1 IN

410.0 MM

16.1 IN

410.0 MM

16.1 IN

410.0 MM

16.1 IN

410.0 MM

16.1 IN

L

REACH

370.6 MM

14.6 IN

378.8 MM

14.9 IN

384.0 MM

15.1 IN

388.9 MM

15.3 IN

394.5 MM

15.5 IN

400.1 MM

15.8 IN

403.4 MM

15.9 IN

M

STACK

502.6 MM

19.8 IN

509.0 MM

20.0 IN

526.7 MM

20.7 IN

547.5 MM

21.6 IN

568.3 MM

22.4 IN

588.5 MM

23.2 IN

607.7 MM

23.9 IN

N

STEM LENGTH

90.0 MM

3.5 IN

90.0 MM

3.5 IN

100.0 MM

3.9 IN

110.0 MM

4.3 IN

110.0 MM

4.3 IN

120.0 MM

4.7 IN

120.0 MM

4.7 IN

0

TRAIL

72.3 MM

2.8 IN

69.1 MM

2.7 IN

62.8 MM

2.5 IN

59.7 MM

2.4 IN

56.6 MM

2.2 IN

54.7 MM

2.2 IN

54.7 MM

2.2 IN
