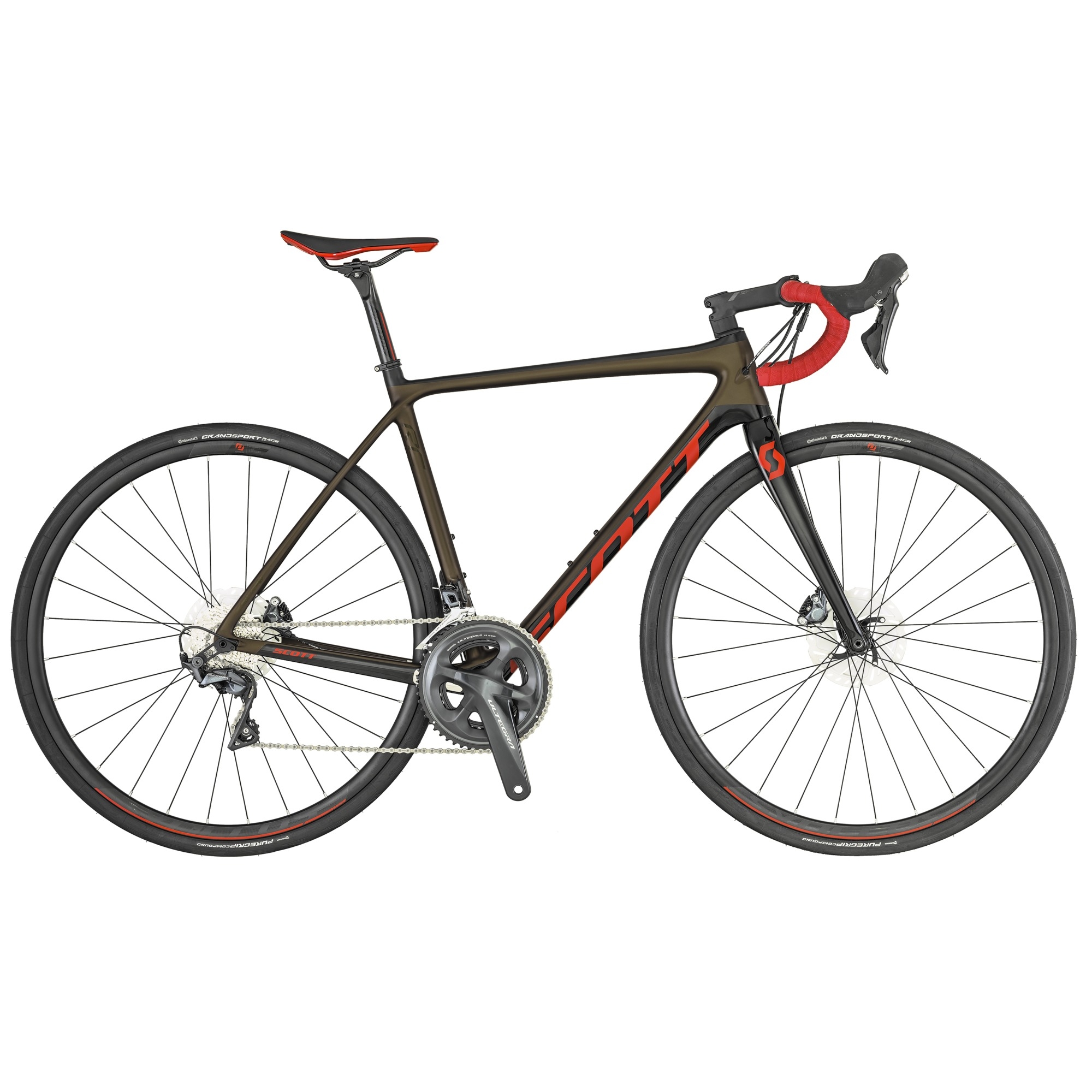

2019 SCOTT ADDICT RC 20 DISC

輕引力X競賽級碟煞公路車


極致輕量的代名詞,ADDICT擁有純粹的競賽血液與充滿侵略性的騎乘調性,每次踩踏都能感受到它的力量與速度,是絕對的爬坡武器,更是讓人屏息以待的極輕量公路車經典,2019 ADDICT 20 DISC採用HMF輕量級碳纖維,搭載最新的碟煞系統車體結構,在以碟煞制動的原則下,仍然保有輕量化的個性,改變的範圍包括在車架後三角與前叉上設定了專屬的平面式碟煞座,同時也增加了管件與輪胎的間隙以及變更走線的方式,邀請您一同體驗最新的公路車碟煞動力科技。

車架尺寸:XXS47 / XS49 / S52 / M54 / L56 / XL58 / XXL61
建議售價:成車NT$ 119,000



產品規格

車架

Addict Disc HMF / IMP Carbon technology

Road Race geometry / Replaceable Dropout

前叉

Addict HMF Flatmount Disc

1 1/8"-1 1/4" tapered Carbon steerer

Carbon Dropout

頭碗

Syncros Integrated

後變速器

Shimano Ultegra RD-R8000-SS

22 Speed

前變速器

Shimano Ultegra FD-R8000

變速把手

Shimano ST-R8020 Disc Dual control

22 Speed

煞車系統

Shimano BR-R8070 Hyd Disc

160/F and 160/Rmm SM-RT800 CL Rotor

曲柄組

Shimano Ultegra FC-R8000

Hollowtech II 52x36 T

五通中軸
(BB)

Shimano SM-BB71-41B

把手

Syncros Creston 2.0 Compact

Alloy 31.8mm

龍頭

Syncros RR2.0

1 1/8" / four Bolt 31.8mm

座管

Syncros Carbon FL1.0

27.2/350mm

座墊

Syncros Tofino T-Cutout 2.0

輪組

Syncros RP2.0 Disc

28 Front / 28 Rear

Syncros RWS

鏈條

Shimano CN-HG601-11

飛輪

Shimano CS-R7000

11-30

外胎

Continental Grand Sport Race Fold

700x28C

成車重量 KG

8.02

成車

建議售價

NT$119,000

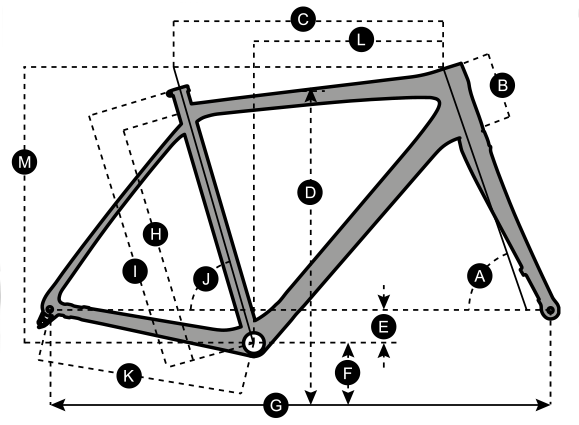

車架幾何



XXS/47



XS/49



S/52



M/54



L/56



XL/58



XXL/61



A

HEAD TUBE ANGLE

70.5 °



71.0 °



72.0 °



72.5 °



73.0 °



73.3 °



73.3 °



B

HEAD TUBE LENGTH

100.0 MM

3.9 IN

105.0 MM

4.1 IN

120.0 MM

4.7 IN

140.0 MM

5.5 IN

160.0 MM

6.3 IN

180.0 MM

7.1 IN

200.0 MM

7.9 IN

C

TOP TUBE HORIZONTAL

510.0 MM

20.1 IN

520.0 MM

20.5 IN

535.0 MM

21.1 IN

550.0 MM

21.7 IN

565.0 MM

22.2 IN

580.0 MM

22.8 IN

595.0 MM

23.4 IN

D

STANDOVER HEIGHT

721.8 MM

28.4 IN

734.7 MM

28.9 IN

757.4 MM

29.8 IN

777.0 MM

30.6 IN

796.6 MM

31.4 IN

815.9 MM

32.1 IN

839.1 MM

33.0 IN

E

BB OFFSET

-67.0 MM

-2.6 IN

-67.0 MM

-2.6 IN

-67.0 MM

-2.6 IN

-67.0 MM

-2.6 IN

-67.0 MM

-2.6 IN

-67.0 MM

-2.6 IN

-67.0 MM

-2.6 IN

F

BB HEIGHT

272.0 MM

10.7 IN

272.0 MM

10.7 IN

272.0 MM

10.7 IN

272.0 MM

10.7 IN

272.0 MM

10.7 IN

272.0 MM

10.7 IN

272.0 MM

10.7 IN

G

WHEEL BASE

972.0 MM

38.3 IN

978.0 MM

38.5 IN

980.1 MM

38.6 IN

987.0 MM

38.9 IN

994.2 MM

39.1 IN

1,002.9 MM

39.5 IN

1,012.0 MM

39.8 IN

H

BB CENTER TO TOPTUBE CENTER

410.0 MM

16.1 IN

430.0 MM

16.9 IN

460.0 MM

18.1 IN

480.0 MM

18.9 IN

500.0 MM

19.7 IN

520.0 MM

20.5 IN

550.0 MM

21.7 IN

I

BB CENTER TO TOP OF SEATTUBE

455.0 MM

17.9 IN

475.0 MM

18.7 IN

505.0 MM

19.9 IN

525.0 MM

20.7 IN

545.0 MM

21.5 IN

565.0 MM

22.2 IN

596.0 MM

23.5 IN

J

SEAT ANGLE

74.5 °



74.5 °



74.0 °



73.6 °



73.3 °



73.0 °



72.5 °



K

CHAINSTAY

405.0 MM

15.9 IN

405.0 MM

15.9 IN

405.0 MM

15.9 IN

405.0 MM

15.9 IN

405.0 MM

15.9 IN

405.0 MM

15.9 IN

405.0 MM

15.9 IN

L

REACH

370.6 MM

14.6 IN

378.8 MM

14.9 IN

384.0 MM

15.1 IN

388.9 MM

15.3 IN

394.5 MM

15.5 IN

400.1 MM

15.8 IN

403.4 MM

15.9 IN

M

STACK

502.6 MM

19.8 IN

509.0 MM

20.0 IN

526.7 MM

20.7 IN

547.5 MM

21.6 IN

568.3 MM

22.4 IN

588.5 MM

23.2 IN

607.7 MM

23.9 IN

N

STEM LENGTH

80.0 MM

3.1 IN

90.0 MM

3.5 IN

100.0 MM

3.9 IN

110.0 MM

4.3 IN

110.0 MM

4.3 IN

120.0 MM

4.7 IN

120.0 MM

4.7 IN
