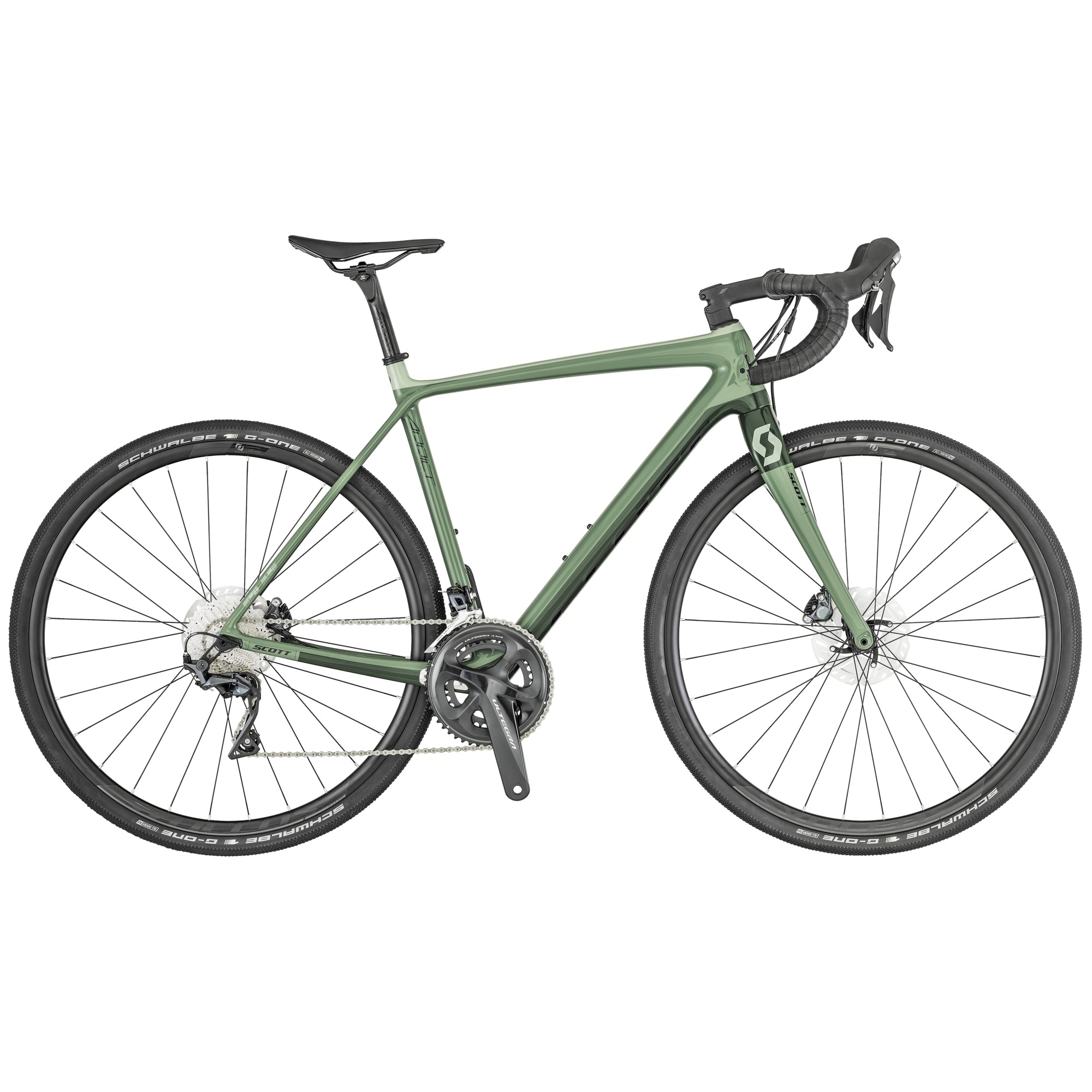

2019 SCOTT ADDICT GRAVEL 20

耐力挑戰型公路車


ADDICT家族的全新成員,屬於Endurance耐力挑戰性格的New ADDICT在2019年重磅登場,這部全新發表的ADDICT幾乎是完全重新設計的!為了迎接未來市場主流的公路車碟煞制動系統,採用略為加長的車首管幾何,以及一體成型的車架前三角和吸震型的碳纖疊層結構設計,同時在重量上仍必須以輕量化為原則,並且加寬了前叉與後叉間距可容許最大32C的輪胎安裝,舒適與強悍的調性讓您能騎得更遠。

車架尺寸:XXS47 / XS49 / S52 / M54 / L56 / XL58 / XXL61
建議售價:成車NT$ 128,000

產品規格

車架

Addict Gravel Disc HMF / IMP Carbon technology

Gravel Race geometry / Replaceable Dropout

前叉

Addict Gravel Disc HMF Flatmount

1 1/8"-1 1/4" tapered Carbon steerer

Alloy Dropout

頭碗

Syncros Integrated

後變速器

Shimano Ultegra RD-R8000-GS

22 Speed

前變速器

Shimano Ultegra FD-R8000

變速把手

Shimano ST-R8020 Disc

Dual control

22 Speed

煞車系統

Shimano BR-R8070 Hyd Disc

160/F and 160/Rmm SM-RT800 CL Rotor

曲柄組

Shimano Ultegra FC-R8000

Hollowtech II 50x34 T

五通中軸
(BB)

Ultegra SM-BB71-41B

把手

Syncros Creston 2.0 Flare

Alloy 31.8mm

龍頭

Syncros RR2.0 1 1/8" / four Bolt 31.8mm

座管

Syncros Carbon FL1.0

27.2/350mm

座墊

Syncros Tofino T-Cutout 2.0

輪組

Syncros RP2.0 Disc

Syncros RWS

鏈條

Shimano CN-HG701-11

飛輪

Shimano CS-HG800

11-34

外胎

Schwalbe G-ONE Allround FOLD

700x35C

成車重量 KG

8.46

成車

建議售價

NT$128,000

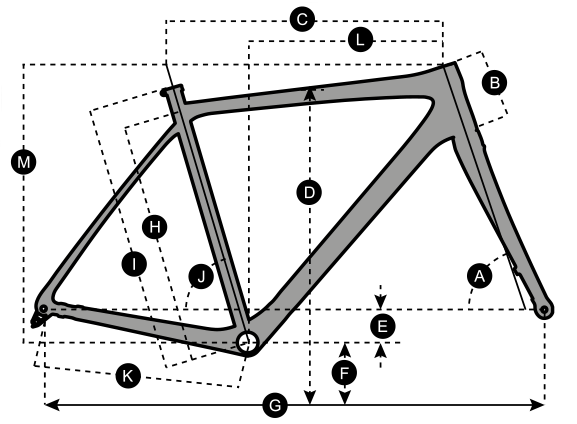

車架幾何



XS/49



S/52



M/54



L/56



XL/58



A

HEAD TUBE ANGLE

70.0 °



70.0 °



71.0 °



71.0 °



71.0 °



B

HEAD TUBE LENGTH

95.0 MM

3.7 IN

120.0 MM

4.7 IN

140.0 MM

5.5 IN

160.0 MM

6.3 IN

180.0 MM

7.1 IN

C

TOP TUBE HORIZONTAL

505.0 MM

19.9 IN

525.0 MM

20.7 IN

545.0 MM

21.5 IN

568.0 MM

22.4 IN

590.0 MM

23.2 IN

D

STANDOVER HEIGHT

749.8 MM

29.5 IN

775.7 MM

30.5 IN

796.2 MM

31.3 IN

814.1 MM

32.1 IN

832.0 MM

32.8 IN

E

BB OFFSET

-68.0 MM

-2.7 IN

-68.0 MM

-2.7 IN

-68.0 MM

-2.7 IN

-68.0 MM

-2.7 IN

-68.0 MM

-2.7 IN

F

BB HEIGHT

281.0 MM

11.1 IN

281.0 MM

11.1 IN

281.0 MM

11.1 IN

281.0 MM

11.1 IN

281.0 MM

11.1 IN

G

WHEEL BASE

984.0 MM

38.7 IN

1,002.0 MM

39.4 IN

1,017.0 MM

40.0 IN

1,043.0 MM

41.1 IN

1,056.0 MM

41.6 IN

H

BB CENTER TO TOPTUBE CENTER

431.5 MM

17.0 IN

462.7 MM

18.2 IN

483.0 MM

19.0 IN

503.2 MM

19.8 IN

523.3 MM

20.6 IN

I

BB CENTER TO TOP OF SEATTUBE

490.0 MM

19.3 IN

520.0 MM

20.5 IN

540.0 MM

21.3 IN

560.0 MM

22.0 IN

580.0 MM

22.8 IN

J

SEAT ANGLE

74.5 °



74.0 °



73.5 °



73.0 °



73.0 °



K

CHAINSTAY

422.0 MM

16.6 IN

422.0 MM

16.6 IN

422.0 MM

16.6 IN

422.0 MM

16.6 IN

422.0 MM

16.6 IN

L

REACH

360.0 MM

14.2 IN

369.0 MM

14.5 IN

378.0 MM

14.9 IN

390.0 MM

15.4 IN

405.0 MM

15.9 IN

M

STACK

521.8 MM

20.5 IN

545.5 MM

21.5 IN

564.4 MM

22.2 IN

583.3 MM

23.0 IN

602.2 MM

23.7 IN

N

STEM LENGTH

90.0 MM

3.5 IN

100.0 MM

3.9 IN

110.0 MM

4.3 IN

120.0 MM

4.7 IN

120.0 MM

4.7 IN

0

TRAIL
