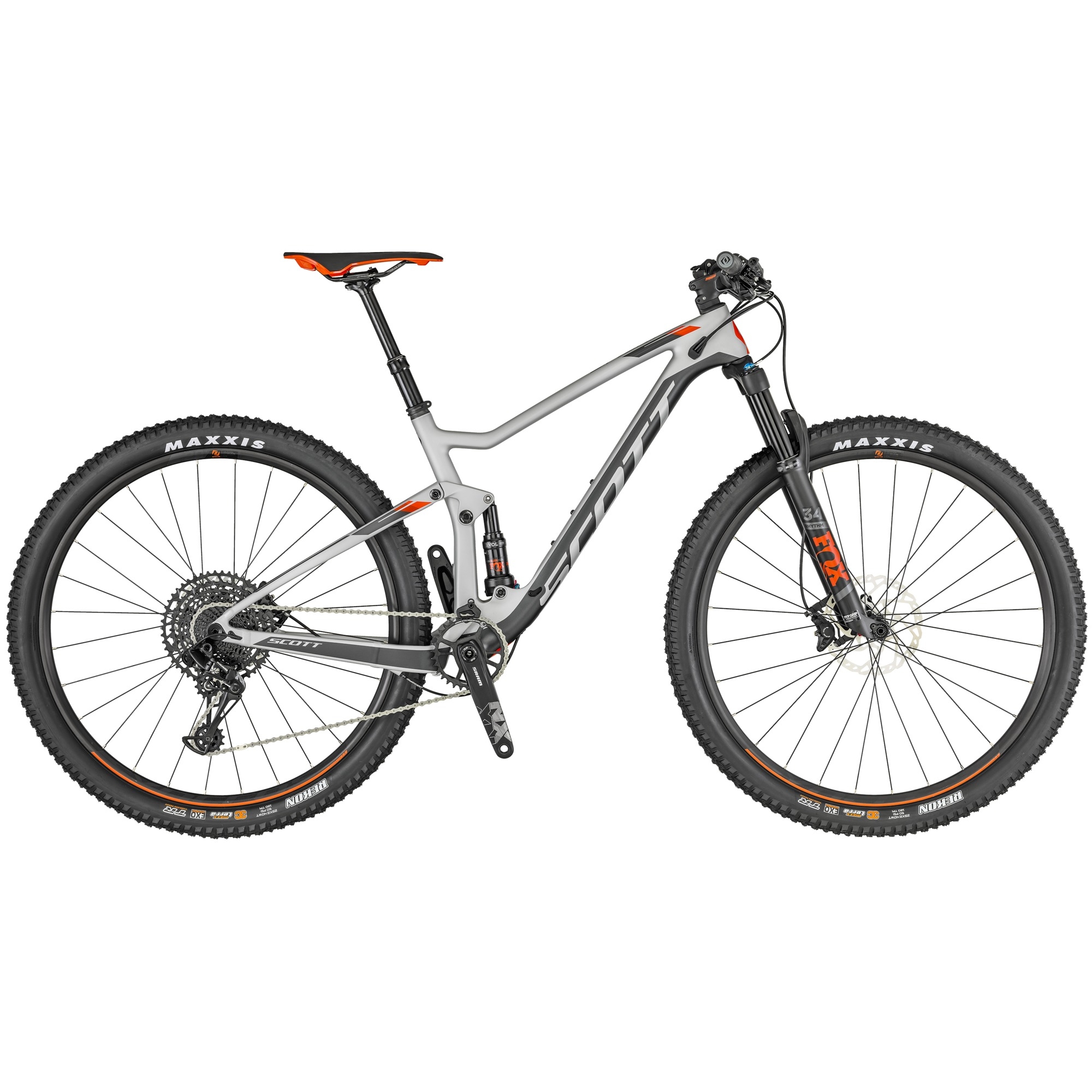

2019 SCOTT SPARK 930

2019 SCOTT SPARK 930

競賽級碳纖29吋輪徑全避震登山車

SCOTT再次打破自己締造的全球最輕量紀錄，全新SPARK 930採用輕量級HMF碳纖紗，以SCOTT獨家的智慧型碳纖疊層EvoLap科技打造完美車體，搭載單轉點搖臂及Trunnion後避震器固定座，這個嶄新的車架平台設計，創造了市面上最短的後避震結構總成，可搭配1X或2X大盤驅動設定以及120mm的前後避震行程規格，加上專利的TwinLoc前後同步三段避震搖控把手，取得了最高效率的踩踏特質以及更適合競賽的優化設定，無論是道路競速或是山林越野，全新的SPARK絕對是您的最強戰力。

車架尺寸：S / M / L / XL
建議售價：成車NT$ 128,000

產品規格

車架	Spark 3 Carbon / IMP technology / HMF Mainframe BB92 / Alloy SL 6011 swingarm SW dropouts for Boost 12x148mm 2.6 tire compatible / TBC Trunnion box construction
前叉	FOX 34 Float Rhythm Air Grip 3 / 3-Modes / 15x110mm QR axle / tapered steerer 44mm offset / Reb. Adj. / Lockout / 120mm travel
後避震	FOX NUDE EVOL Trunnion SCOTT custom w. travel / geo adj. 3 modes: Lockout-Traction Control -Descend DPS / Reb. Adj. / Travel 120-85-Lockout / 165X45mm
線控套件	SCOTT TwinLoc TSP Technology Suspension-Seatpost Remote below Bar / 3 modes / integ. Grip clamp
頭碗	Syncros Pro Drop in / Tapered 1.5"-1 1/8" bearing diameter size 42mm and 52mm
後變速器	SRAM NX / Eagle 12 Speed
前變速器	n/a
變速把手	SRAM NX Eagle Trigger
碟煞系統	Shimano SLX M7000 Disc 180mm F&R SM-RT66 Rotor
曲柄組	SRAM NX Eagle DUB Boost 32T
導鏈器	SCOTT custom
五通中軸 (BB)	SRAM DUB PF integrated / shell 41x92mm
把手	Syncros FL2.0 T-Bar / Alloy 6061 T shape Flat / 9° / 740mm Syncros Pro lock-on grips
龍頭	Syncros FL2.0 / 6061 Alloy 6° / integrated Top Cup / 31.8mm / 1 1/8"
座管	Syncros Dropper 2.0 Remote 31.6mm / S size 100mm / M, L & XL 120mm
座墊	Syncros XR2.0 / CROM rails
輪組	Syncros Silverton 2.5 6 Bolt F: 15x110mm, R: 12x148mm Boost 25mm Tubeless ready rim / 28H / DT RWS
鏈條	SRAM CN NX Eagle
飛輪	SRAM NX / XG1230 / 11-50 T
外胎	Maxxis Rekon / 2.4" / 120TPI Kevlar Bead TR Tubeless Ready / EXO 3C maxx Terra
配件	Dropper Post ready & Transport Axle
成車重量 KG	13.10
成車建議售價	NT$128,000

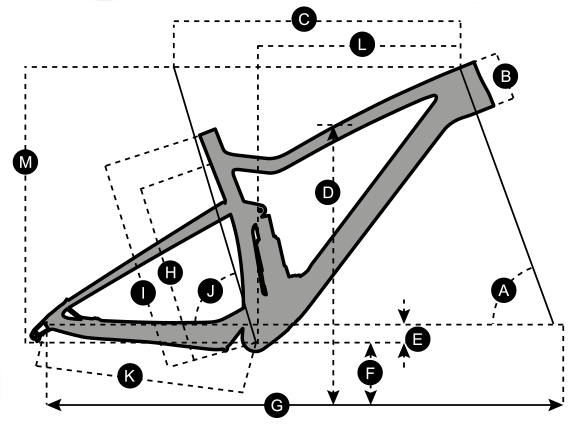

車架幾何

		S		M		L		XL
A	HEAD TUBE ANGLE	67.2 °		67.2 °		67.2 °		67.2 °
B	HEAD TUBE LENGTH	95.0 MM	3.7 IN	95.0 MM	3.7 IN	105.0 MM	4.1 IN	115.0 MM	4.5 IN
C	TOP TUBE HORIZONTAL	575.0 MM	22.6 IN	605.0 MM	23.8 IN	635.0 MM	25.0 IN	655.0 MM	25.8 IN
D	STANDOVER HEIGHT	738.0 MM	29.1 IN	746.0 MM	29.4 IN	760.0 MM	29.9 IN	778.0 MM	30.6 IN
E	BB OFFSET	-43.0 MM	-1.7 IN	-43.0 MM	-1.7 IN	-43.0 MM	-1.7 IN	-43.0 MM	-1.7 IN
F	BB HEIGHT	327.0 MM	12.9 IN	327.0 MM	12.9 IN	327.0 MM	12.9 IN	327.0 MM	12.9 IN
G	WHEEL BASE	1,121.6 MM	44.2 IN	1,151.6 MM	45.3 IN	1,182.8 MM	46.6 IN	1,203.9 MM	47.4 IN
H	BB CENTER TO TOPTUBE CENTER	345.0 MM	13.6 IN	375.0 MM	14.8 IN	425.0 MM	16.7 IN	475.0 MM	18.7 IN
I	BB CENTER TO TOP OF SEATTUBE	410.0 MM	16.1 IN	440.0 MM	17.3 IN	490.0 MM	19.3 IN	540.0 MM	21.3 IN
J	SEAT ANGLE	73.8 °		73.8 °		73.8 °		73.8 °
K	CHAINSTAY	438.0 MM	17.2 IN	438.0 MM	17.2 IN	438.0 MM	17.2 IN	438.0 MM	17.2 IN
L	REACH	402.7 MM	15.9 IN	432.7 MM	17.0 IN	460.0 MM	18.1 IN	477.3 MM	18.8 IN
M	STACK	593.1 MM	23.4 IN	593.1 MM	23.4 IN	602.4 MM	23.7 IN	611.6 MM	24.1 IN
N	STEM LENGTH	50.0 MM	2.0 IN	60.0 MM	2.4 IN	70.0 MM	2.8 IN	80.0 MM	3.1 IN
0	TRAIL	100.2 MM	3.9 IN	100.2 MM	3.9 IN	100.2 MM	3.9 IN	100.2 MM	3.9 IN
