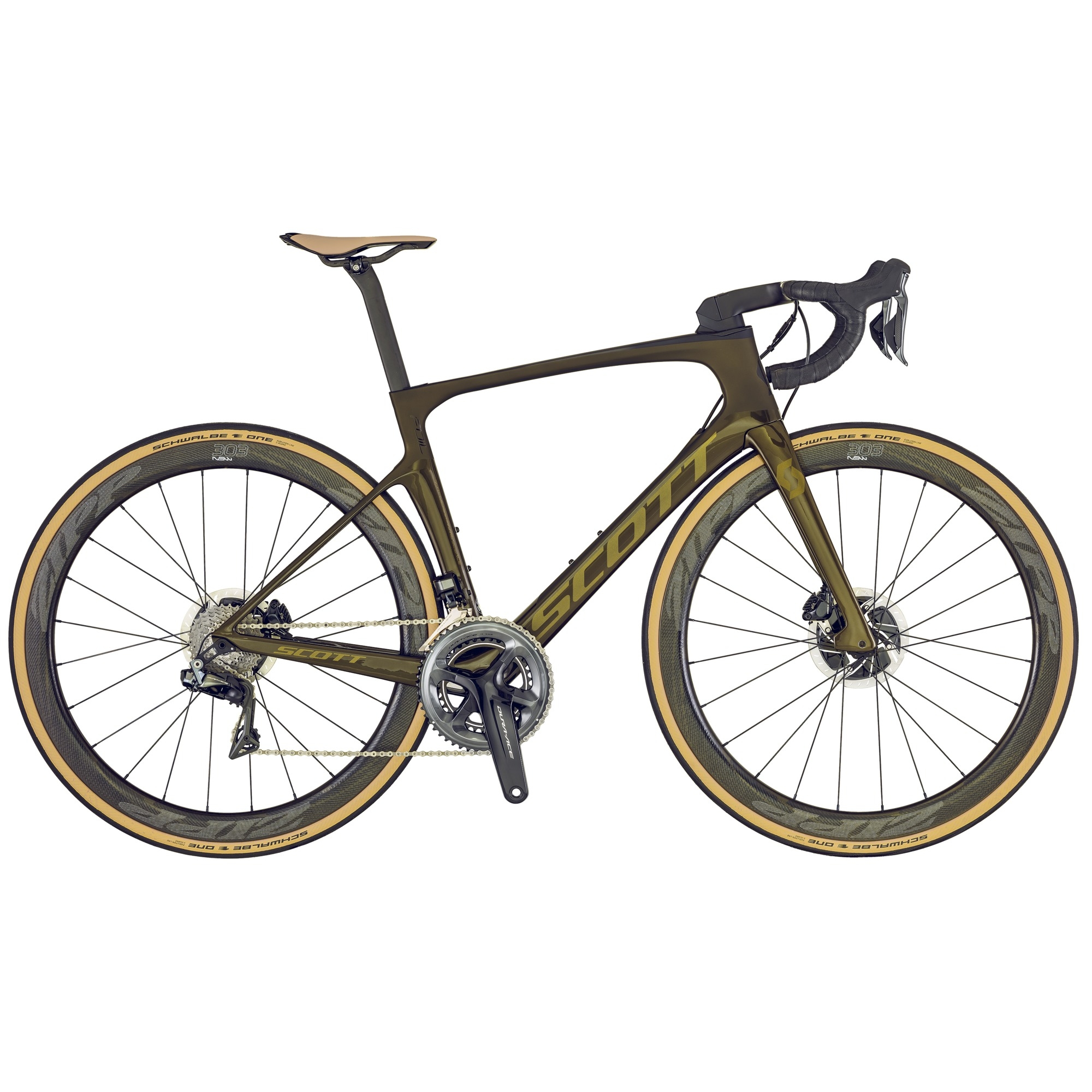

2019 SCOTT FOIL PREMIUM DISC
60週年紀念版 | 空氣力學碟煞公路車
SCOTT發掘了公路車的第五元素『駕馭制動』,這個概念讓全新的FOIL DISC有了嶄新的車架設計,專屬的空力前叉具備特殊的3:1不對稱式導流罩,可將碟煞卡鉗隱身在車體結構後方,大幅降低了風阻係數,SCOTT在針對碟煞車架空氣力學設計的同時也加大了輪組安裝間隙,最大可達30C的輪胎寬度,符合舒適和安全的公路車趨勢,車架+前叉重量僅僅只比輪煞版本多出40克,卻能裝載更精準的剎車手感,以及更放心的雨地與下坡制動性能,這就是你需要的未來公路車。
車架尺寸:XXS47 / XS49 / S52 / M54 / L56 / XL58 / XXL61
建議售價:成車NT$ 450,000 / 車架組NT$132,000
※ 台灣地區僅引進車架組 | 一體式把手為選配
產品規格
車架 |
FOIL DISC HMX / IMP, F01 AERO Carbon tech. Road Race geometry Replaceable Dropout STD Seattube / INT BB |
前叉 |
FOIL DISC HMX 1 1/4"-1 1/2" Carbon steerer Integrated Carbon Dropout |
頭碗 |
Syncros Integrated |
後變速器 |
Shimano Dura-Ace RD-R9150 22 Speed Electronic |
前變速器 |
Shimano Dura-Ace FD-R9150 Eletronic Shift System |
變速把手 |
Shimano Dura-Ace ST-R9170 Dual control 22 Speed Electronic Shift |
煞車系統 |
Shimano BR-R9170 Hyd Disc 160/F and 160/Rmm SM-RT900 CL Rotor |
曲柄組 |
Shimano Dura-Ace FC-R9100 Hollowtech II 52x36 T |
五通中軸 |
Shimano SM-BB92-41B |
把手 |
Syncros Carbon FOIL Combo |
座管 |
Syncros FOIL aero Carbon |
座墊 |
Syncros Belcarra 1.0 |
輪組 |
Zipp 303 NSW Disc Firecrest Carbon Clincher Tubeless Syncros Plug-in RWS |
鏈條 |
Shimano Dura-Ace CN-HG901-11 |
飛輪 |
Shimano Dura-Ace CS-R9100 11-30 |
外胎 |
Schwalbe ONE V-Guard Fold 700x28C |
成車重量 KG |
7.36 |
車架 建議售價 |
NT$132,000 |
成車 建議售價 |
NT$450,000 (一體式把手為選配) |

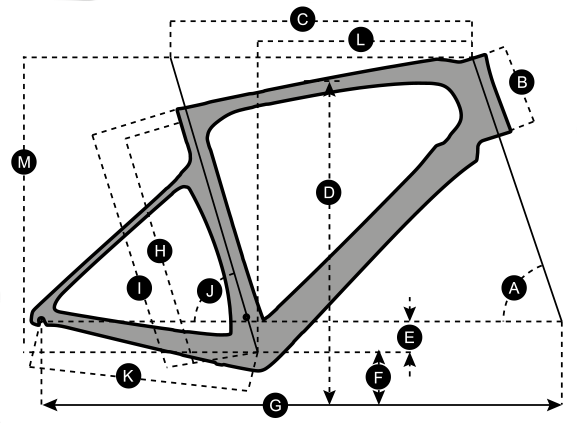

車架幾何
XXS/47 |
XS/49 |
S/52 |
M/54 |
L/56 |
XL/58 |
XXL/61 |
||
A |
head tube angle |
70.5 ° |
71.0 ° |
72.0 ° |
72.5 ° |
73.0 ° |
73.3 ° |
73.3 ° |
B |
HEAD TUBE LENGTH |
110.0 MM |
115.0 MM |
130.0 MM |
150.0 MM |
170.0 MM |
190.0 MM |
210.0 MM |
C |
TOP TUBE HORIZONTAL |
510.0 MM |
520.0 MM |
535.0 MM |
550.0 MM |
565.0 MM |
580.0 MM |
595.0 MM |
D |
STANDOVER HEIGHT |
715.9 MM |
729.4 MM |
753.6 MM |
773.5 MM |
798.8 MM |
812.9 MM |
837.3 MM |
E |
BB OFFSET |
-66.0 MM |
-66.0 MM |
-66.0 MM |
-66.0 MM |
-66.0 MM |
-66.0 MM |
-66.0 MM |
F |
BB HEIGHT |
273.0 MM |
273.0 MM |
273.0 MM |
273.0 MM |
273.0 MM |
273.0 MM |
273.0 MM |
G |
WHEEL BASE |
972.0 MM |
978.0 MM |
980.0 MM |
987.0 MM |
994.2 MM |
1,002.9 MM |
1,012.0 MM |
H |
BB CENTER TO TOPTUBE CENTER |
410.0 MM |
430.0 MM |
460.0 MM |
480.0 MM |
500.0 MM |
520.0 MM |
550.0 MM |
I |
BB CENTER TO TOP OF SEATTUBE |
470.0 MM |
490.0 MM |
520.0 MM |
540.0 MM |
560.0 MM |
580.0 MM |
610.0 MM |
J |
SEAT ANGLE |
74.5 ° |
74.5 ° |
74.0 ° |
73.6 ° |
73.3 ° |
73.0 ° |
72.5 ° |
K |
CHAINSTAY |
410.0 MM |
410.0 MM |
410.0 MM |
410.0 MM |
410.0 MM |
410.0 MM |
410.0 MM |
L |
REACH |
370.6 MM |
378.8 MM |
384.0 MM |
388.9 MM |
394.5 MM |
400.0 MM |
403.4 MM |
M |
STACK |
502.6 MM |
509.0 MM |
526.7 MM |
547.5 MM |
568.3 MM |
588.5 MM |
607.7 MM |
N |
STEM LENGTH |
90.0 MM |
90.0 MM |
100.0 MM |
110.0 MM |
110.0 MM |
120.0 MM |
120.0 MM |
A |
HEAD TUBE ANGLE |
70.5 ° |
71.0 ° |
72.0 ° |
72.5 ° |
73.0 ° |
73.3 ° |
73.3 ° |
B |
HEAD TUBE LENGTH |
4.3 IN |
4.5 IN |
5.1 IN |
5.9 IN |
6.7 IN |
7.5 IN |
8.3 IN |
C |
TOP TUBE HORIZONTAL |
20.1 IN |
20.5 IN |
21.1 IN |
21.7 IN |
22.2 IN |
22.8 IN |
23.4 IN |
D |
STANDOVER HEIGHT |
28.2 IN |
28.7 IN |
29.7 IN |
30.5 IN |
31.4 IN |
32.0 IN |
33.0 IN |
E |
BB OFFSET |
-2.6 IN |
-2.6 IN |
-2.6 IN |
-2.6 IN |
-2.6 IN |
-2.6 IN |
-2.6 IN |
F |
BB HEIGHT |
10.7 IN |
10.7 IN |
10.7 IN |
10.7 IN |
10.7 IN |
10.7 IN |
10.7 IN |
G |
WHEEL BASE |
38.3 IN |
38.5 IN |
38.6 IN |
38.9 IN |
39.1 IN |
39.5 IN |
39.8 IN |
H |
BB CENTER TO TOPTUBE CENTER |
16.1 IN |
16.9 IN |
18.1 IN |
18.9 IN |
19.7 IN |
20.5 IN |
21.7 IN |
I |
BB CENTER TO TOP OF SEATTUBE |
18.5 IN |
19.3 IN |
20.5 IN |
21.3 IN |
22.0 IN |
22.8 IN |
24.0 IN |
J |
SEAT ANGLE |
74.5 ° |
74.5 ° |
74.0 ° |
73.6 ° |
73.3 ° |
73.0 ° |
72.5 ° |
K |
CHAINSTAY |
16.1 IN |
16.1 IN |
16.1 IN |
16.1 IN |
16.1 IN |
16.1 IN |
16.1 IN |
L |
REACH |
14.6 IN |
14.9 IN |
15.1 IN |
15.3 IN |
15.5 IN |
15.7 IN |
15.9 IN |
M |
STACK |
19.8 IN |
20.0 IN |
20.7 IN |
21.6 IN |
22.4 IN |
23.2 IN |
23.9 IN |
N |
STEM LENGTH |
3.5 IN |
3.5 IN |
3.9 IN |
4.3 IN |
4.3 IN |
4.7 IN |
4.7 IN |
