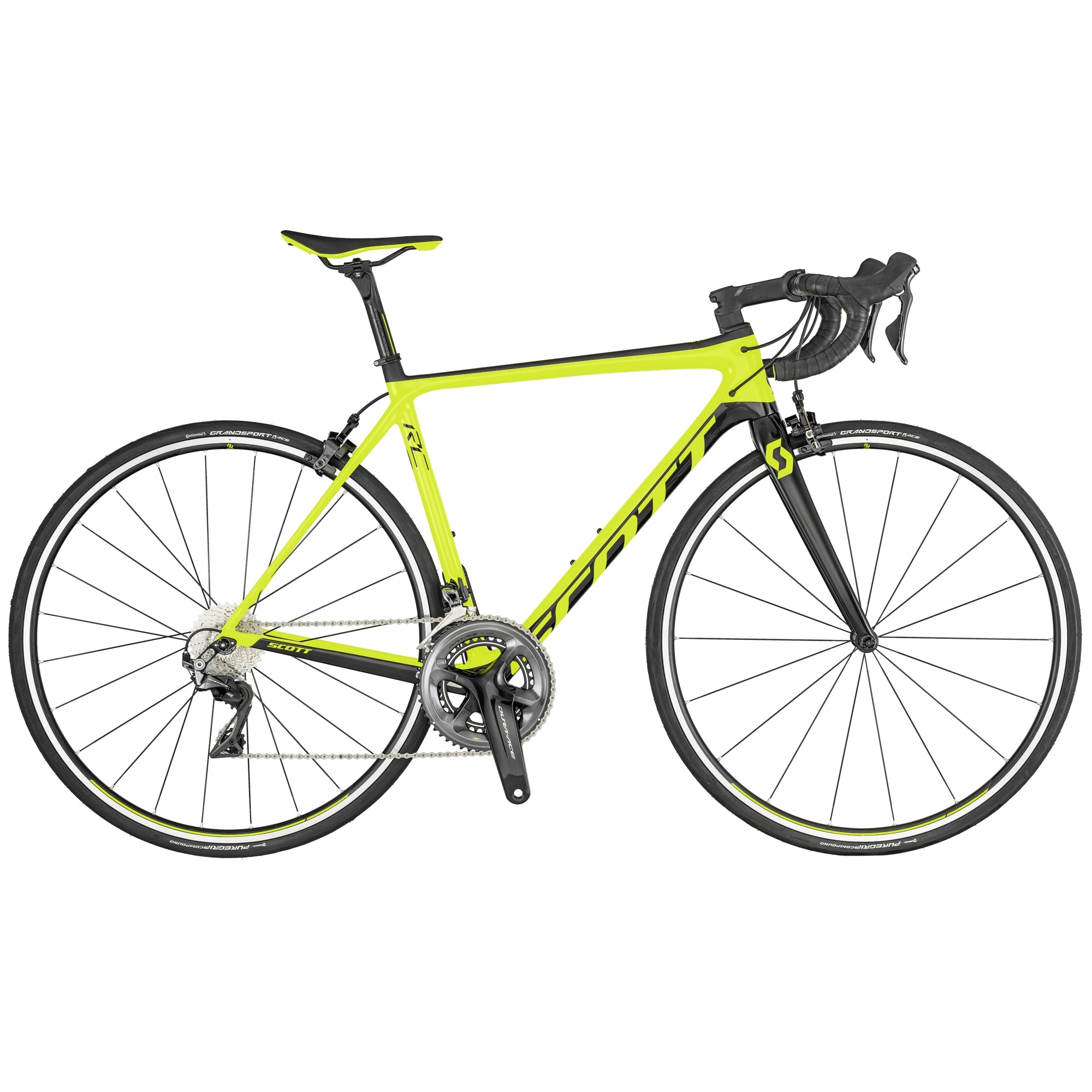

2019 SCOTT ADDICT RC 10 DISC

輕引力X競賽級公路車


極致輕量的代名詞,ADDICT擁有純粹的競賽血液與充滿侵略性的騎乘調性,每次踩踏都能感受到它的力量與速度,是絕對的爬坡武器,更是讓人屏息以待的極輕量公路車經典, 2019 ADDICT 10採用HMF輕量級碳纖維,現在就點燃你對速度的熱情,體驗這極致的輕引力。

車架尺寸:XXS47 / XS49 / S52 / M54 / L56 / XL58 / XXL61
建議售價:成車NT$ 150,000 / 車架組NT$ 79,500
※ 台灣地區僅引進車架組



產品規格

車架

Addict HMF / IMP Carbon technology

Road Race geometry / Replaceable Dropout

前叉

Addict HMF

1 1/8"-1 1/4" Carbon steerer

Integrated Carbon Dropout

頭碗

Syncros Integrated

後變速器

Shimano Dura-Ace RD-R9100

22 Speed

前變速器

Shimano Dura-Ace FD-R9100

變速把手

Shimano Dura-Ace ST-R9100

Dual control 22 Speed

煞車系統

Shimano Dura-Ace BR-R9100

Super SLR Dual pivot

曲柄組

Shimano Dura-Ace FC-R9100

Hollowtech II 52x36 T

五通中軸
(BB)

Shimano SM-BB92-41B

把手

Syncros Creston 2.0 Compact

Alloy 31.8mm

龍頭

Syncros RR2.0

1 1/8" / four Bolt 31.8mm

座管

Syncros Carbon FL1.0

27.2/350mm

座墊

Syncros Tofino T-Cutout 2.0

輪組

Syncros RP2.0 Disc

28 Front / 28 Rear

Syncros RWS

鏈條

Shimano Ultegra CN-HG701-11

飛輪

Shimano Ultegra CS-R8000

11-30

外胎

Continental Grand Sport Race Fold

700x25C

成車重量 KG

7.26

車架

建議售價

NT$79,500

成車

建議售價

NT$150,000

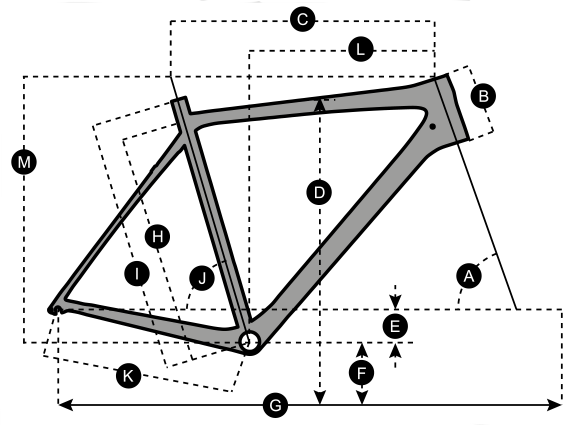

車架幾何



XXS/47



XS/49



S/52



M/54



L/56



XL/58



XXL/61



A

HEAD TUBE ANGLE

70.5 °



71.0 °



72.0 °



72.5 °



73.0 °



73.3 °



73.3 °



B

HEAD TUBE LENGTH

100.0 MM

3.9 IN

105.0 MM

4.1 IN

120.0 MM

4.7 IN

140.0 MM

5.5 IN

160.0 MM

6.3 IN

180.0 MM

7.1 IN

200.0 MM

7.9 IN

C

TOP TUBE HORIZONTAL

510.0 MM

20.1 IN

520.0 MM

20.5 IN

535.0 MM

21.1 IN

550.0 MM

21.7 IN

565.0 MM

22.2 IN

580.0 MM

22.8 IN

595.0 MM

23.4 IN

D

STANDOVER HEIGHT

721.8 MM

28.4 IN

734.7 MM

28.9 IN

757.4 MM

29.8 IN

777.0 MM

30.6 IN

796.6 MM

31.4 IN

815.9 MM

32.1 IN

839.1 MM

33.0 IN

E

BB OFFSET

-67.0 MM

-2.6 IN

-67.0 MM

-2.6 IN

-67.0 MM

-2.6 IN

-67.0 MM

-2.6 IN

-67.0 MM

-2.6 IN

-67.0 MM

-2.6 IN

-67.0 MM

-2.6 IN

F

BB HEIGHT

272.0 MM

10.7 IN

272.0 MM

10.7 IN

272.0 MM

10.7 IN

272.0 MM

10.7 IN

272.0 MM

10.7 IN

272.0 MM

10.7 IN

272.0 MM

10.7 IN

G

WHEEL BASE

972.0 MM

38.3 IN

978.0 MM

38.5 IN

980.1 MM

38.6 IN

987.0 MM

38.9 IN

994.2 MM

39.1 IN

1,002.9 MM

39.5 IN

1,012.0 MM

39.8 IN

H

BB CENTER TO TOPTUBE CENTER

410.0 MM

16.1 IN

430.0 MM

16.9 IN

460.0 MM

18.1 IN

480.0 MM

18.9 IN

500.0 MM

19.7 IN

520.0 MM

20.5 IN

550.0 MM

21.7 IN

I

BB CENTER TO TOP OF SEATTUBE

455.0 MM

17.9 IN

475.0 MM

18.7 IN

505.0 MM

19.9 IN

525.0 MM

20.7 IN

545.0 MM

21.5 IN

565.0 MM

22.2 IN

596.0 MM

23.5 IN

J

SEAT ANGLE

74.5 °



74.5 °



74.0 °



73.6 °



73.3 °



73.0 °



72.5 °



K

CHAINSTAY

405.0 MM

15.9 IN

405.0 MM

15.9 IN

405.0 MM

15.9 IN

405.0 MM

15.9 IN

405.0 MM

15.9 IN

405.0 MM

15.9 IN

405.0 MM

15.9 IN

L

REACH

370.6 MM

14.6 IN

378.8 MM

14.9 IN

384.0 MM

15.1 IN

388.9 MM

15.3 IN

394.5 MM

15.5 IN

400.1 MM

15.8 IN

403.4 MM

15.9 IN

M

STACK

502.6 MM

19.8 IN

509.0 MM

20.0 IN

526.7 MM

20.7 IN

547.5 MM

21.6 IN

568.3 MM

22.4 IN

588.5 MM

23.2 IN

607.7 MM

23.9 IN

N

STEM LENGTH

80.0 MM

3.1 IN

90.0 MM

3.5 IN

100.0 MM

3.9 IN

110.0 MM

4.3 IN

110.0 MM

4.3 IN

120.0 MM

4.7 IN

120.0 MM

4.7 IN
